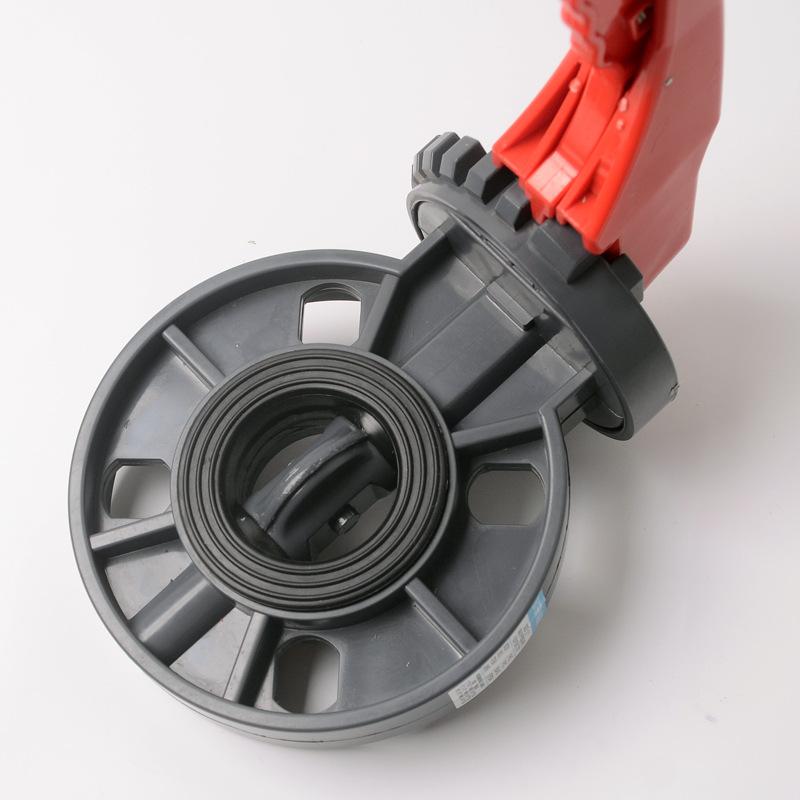

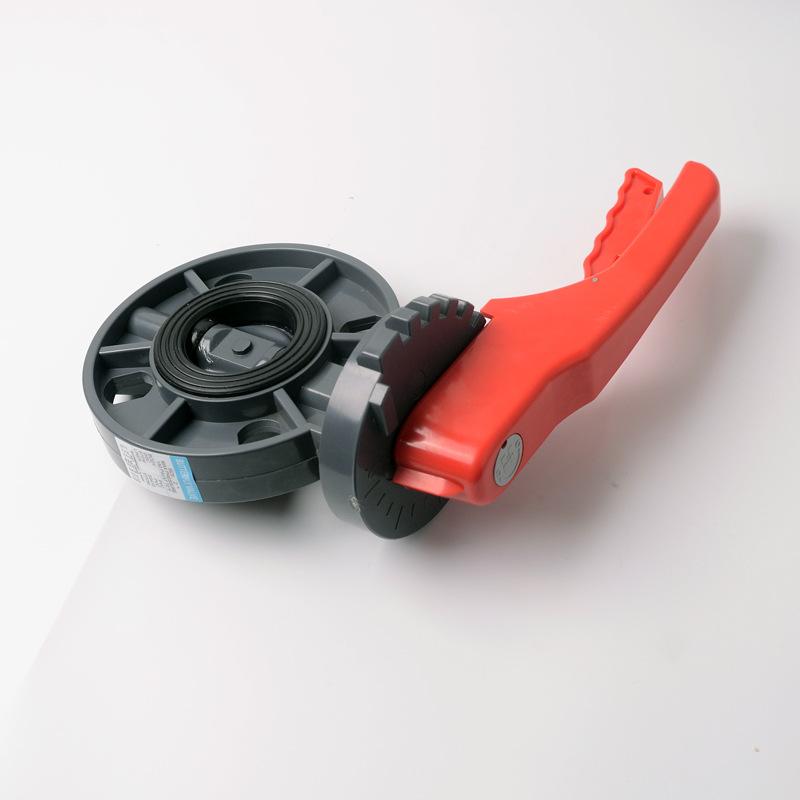

2" Lever Operated PVC Wafer Butterfly Valve
Estimated price:
$
22.52
(Final price may vary and will be confirmed via quote.)
| Material | PVC |
| inlet connection size | 2 inch |
| inlet connection type | wafer type |
| operation | manual (lever handle) |
The 2" wafer butterfly valve is designed for both on/off and modulating flow control of water, air, and oil. It has a wafer-style body, allowing it to fit between two flanges in a pipeline. The valve body is made of PVC, providing outstanding corrosion resistance and lightweight durability. The valve can be manually operated with a lever handle, allowing simple and quick quarter-turn operation to open or close the valve.
Ships worldwide (International shipping fees apply)
Estimated delivery in 5–10 days
In stock
Customizable
Description
- The 2" wafer butterfly valve is used for on/off control and modulating control of the flow of water, air, and oil.
- The 2" wafer butterfly valve is specifically designed to be mounted between two pipe flanges with ANSI standards.
- The valve body is made of PVC, providing outstanding corrosion resistance and lightweight durability. It features a PVC disc and a 316 stainless steel stem.
- The valve can be manually operated with a lever handle, allowing simple and quick quarter-turn operation to open or close the valve.
- The EPDM stem seals offer excellent resistance to water, steam, and mild chemicals, ensuring reliable sealing performance across a wide temperature range.
- The EPDM seat provides a tight shutoff and ensures sealing between the disc and the valve body.
- The butterfly valve features a concentric design, in which the turning axis and axial alignment of the disc are both centered with the valve body, making it compact and cost-effective.
- The valve is rated ANSI Class 150, with a maximum working pressure of approximately 285 psi (at 100°F).
- The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.
Specifications
| Product Name | 2" lever operated PVC wafer butterfly valve |
|---|---|
| valve type | butterfly valve |
| Material | PVC |
| port | 2-way |
| inlet connection size | 2 inch |
| inlet connection type | wafer type |
| outlet connection size | 2 inch |
| outlet connection type | wafer type |
| operation | manual (lever handle) |
| stem seals | EPDM |
| seat | EPDM |
| disc material | PVC |
| stem material | 316 stainless steel |
| valve design | concentric |
| pressure rating | ANSI Class 150 (285 psi @ 100°F) |
| best suited media | water, air, oil |
| Item Type | wafer butterfly valve |
| Reference | S-656554803212 |
| Brand | Hykins |
