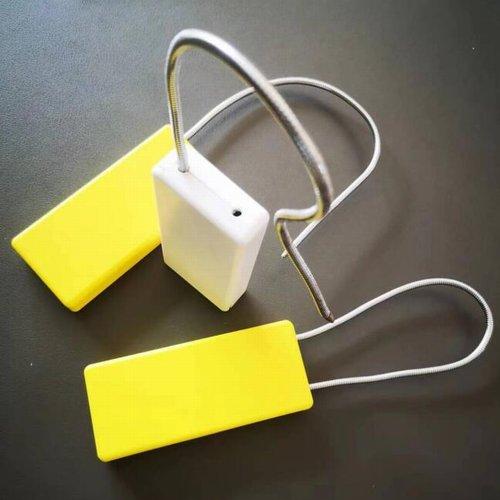

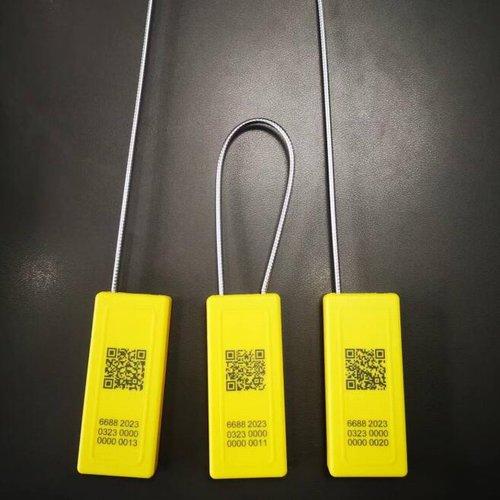

Tamper Evident RFID Cable Seal

These tamper evident RFID cable seals provide a robust, cost-effective solution for secure logistics tracking, container sealing, asset protection, and high-value transportation management. Designed with an integrated RFID capability, the cable seal enables fast, automated identification while simultaneously ensuring physical security of the sealed object. It is ideal for applications where both traceability and tamper detection are critical, helping improve operational visibility, reduce manual inspection, and enhance end-to-end supply chain security.

Built with a tamper-evident locking mechanism and durable IP66 waterproof construction, the RFID cable seal is engineered for harsh environments and demanding field conditions. It supports on-metal usage and integrates an embedded temperature sensor for additional monitoring capabilities during transport or storage. The 4mm cable wire diameter provides strong mechanical resistance, while the rugged design ensures stable performance even under vibration, weather exposure, or long-distance shipping conditions.

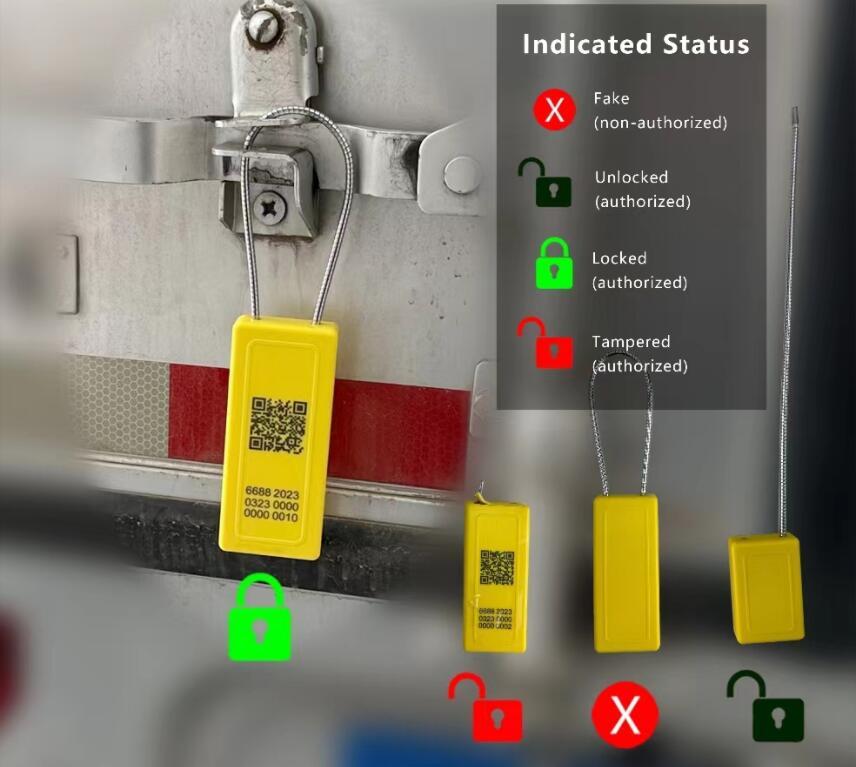

The RFID cable seal delivers intelligent status reporting, enabling operators to receive real-time authentication states such as UN-LOCKED when approved for use, LOCKED when the cable is properly inserted and secured, and TAMPERED when the wire is cut, twisted, or forcibly manipulated. It also supports encrypted identification outputs including FAKE, REAL, UNLOCKED, LOCKED, and TAMPERED for secure tracking in both online and offline environments. For reliable tamper detection and stable performance, the system requires the latest BU01 reader or PU01 PDA, while standard RFID readers may only detect tamper status within far-field reading conditions.

• Integrated RFID technology enables fast, reliable identification and automated tracking of sealed assets.
• Read ranges of up to 23 m for efficient long-distance identification.
• Pull-tight self-locking cable design provides secure, tamper-evident sealing for containers, trailers, and valuable assets.
• Rugged IP66 waterproof construction ensures reliable performance in harsh indoor and outdoor environments.
• Durable ABS plastic housing with galvanized steel wire cable delivers excellent mechanical strength and resistance to tampering.
• Intelligent status reporting supports UNLOCKED, LOCKED, and TAMPERED states for enhanced security monitoring.
• Encrypted authentication outputs including FAKE, REAL, UNLOCKED, LOCKED, and TAMPERED provide an additional layer of protection against unauthorized access and counterfeit seals.
• Embedded temperature sensor enables environmental monitoring during transportation and storage.
• Integrated 165 mAh coin battery provides up to 12 months of operating life after the seal is locked.
• Compatible with the latest BU01 reader and PU01 PDA for optimal tamper detection and authentication performance.
