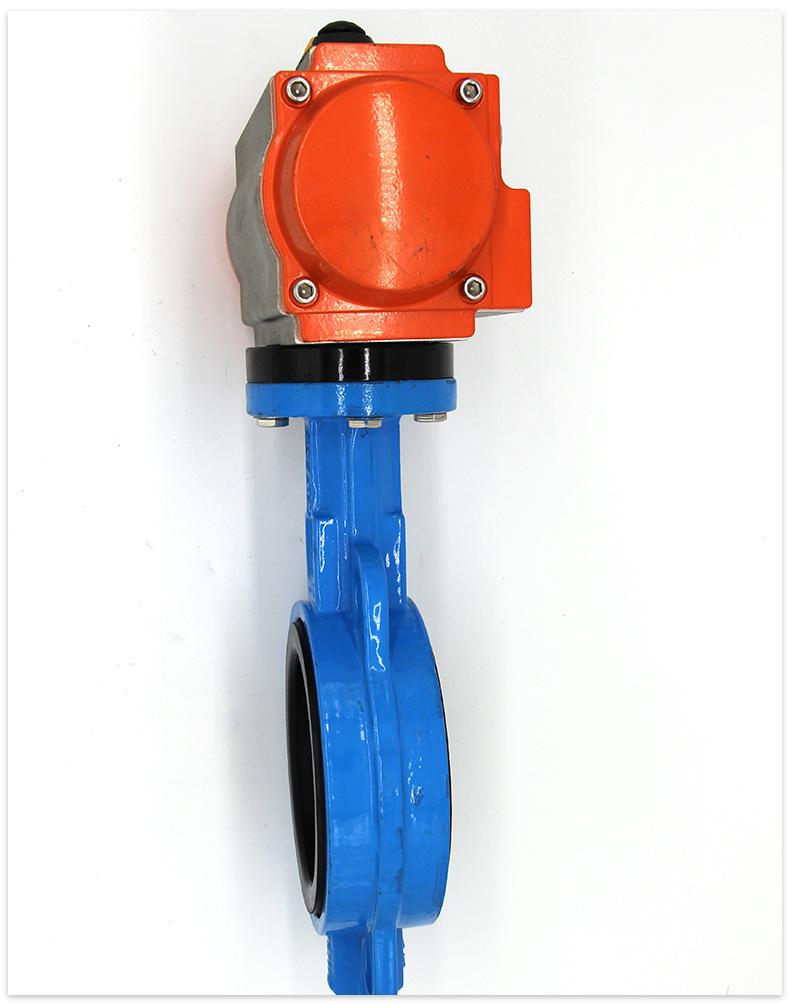

10" Wafer Butterfly Valve With Spring Return Pneumatic Actuator
$
170.33
| Material | ductile iron |
| inlet connection size | 10 inch |
| inlet connection type | wafer type |
| operation | with spring return pneumatic actuator |
The 10" wafer butterfly valve is designed for on/off flow control of water, air, and oil. It has a wafer-style body, allowing it to fit between two flanges in a pipeline. The valve has an epoxy-coated ductile iron body, with 316 stainless steel disc and 420 stainless steel stem. The seals are made of Viton. The valve is operated by a spring-return, quarter-turn pneumatic actuator.
Ships worldwide (International shipping fees apply)
Estimated delivery in 5–20 days
In stock
Note: This price applies to in-stock items available in limited quantities, typically offered as samples. For customized products or bulk orders, please request a quote via the shopping cart page or contact us by email.
Description
- The butterfly valve is used for on/off control or modulating the flow of water, air, and oil.
- The 10" wafer butterfly valve is specifically designed to be mounted between two pipe flanges with ANSI standards.
- The valve body is made of ductile iron, with epoxy coating for enhanced corrosion resistance and extended service life.

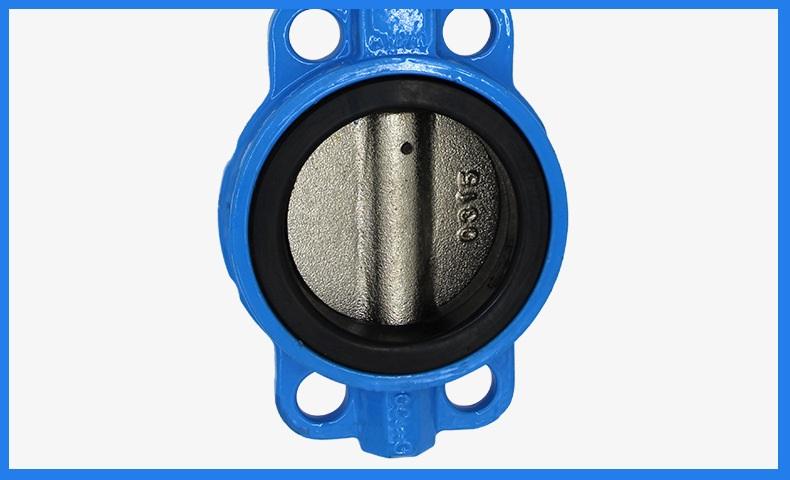

- The butterfly valve features a concentric design, in which the turning axis and axial alignment of the disc are both centered with the valve body, making it compact and cost-effective.

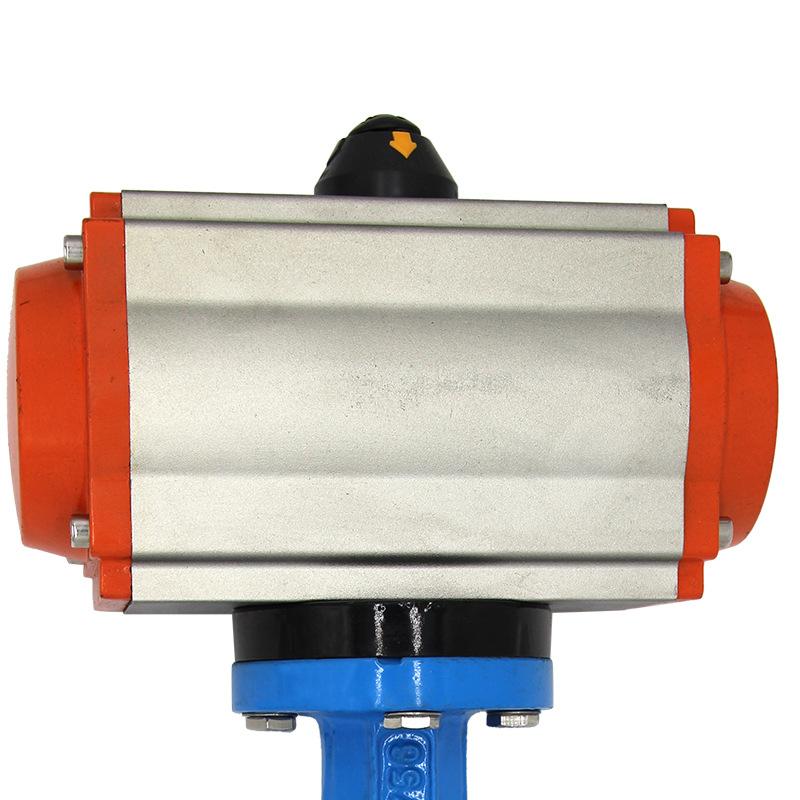

- The valve is operated by a spring return pneumatic actuator that uses compressed air to open the valve and a spring mechanism to close it with a quarter-turn motion, ensuring fast and reliable operation.
- The Viton stem seals offer reliable, long-lasting sealing performance.
- The Viton seat ensures a durable and dependable seal, and enhances chemical and temperature resistance.
- The 316 stainless steel disc offers excellent corrosion resistance, durability, and strength.
- The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.
Specifications
| Product Name | 10" wafer butterfly valve with spring return pneumatic actuator |
|---|---|
| valve type | butterfly valve |
| Material | ductile iron |
| port | 2-way |
| inlet connection size | 10 inch |
| inlet connection type | wafer type |
| outlet connection size | 10 inch |
| outlet connection type | wafer type |
| operation | with spring return pneumatic actuator |
| stem seals | FKM (Viton) |
| seat | FKM (Viton) |
| disc material | 316 stainless steel |
| stem material | 420 stainless steel |
| valve design | concentric |
| maximum pressure | 145 psi (PN10) |
| best suited media | water, air, oil |
| Item Type | wafer butterfly valve |
| Features | ductile iron body with epoxy coating |
| Brand Name | Hykins Basics |
