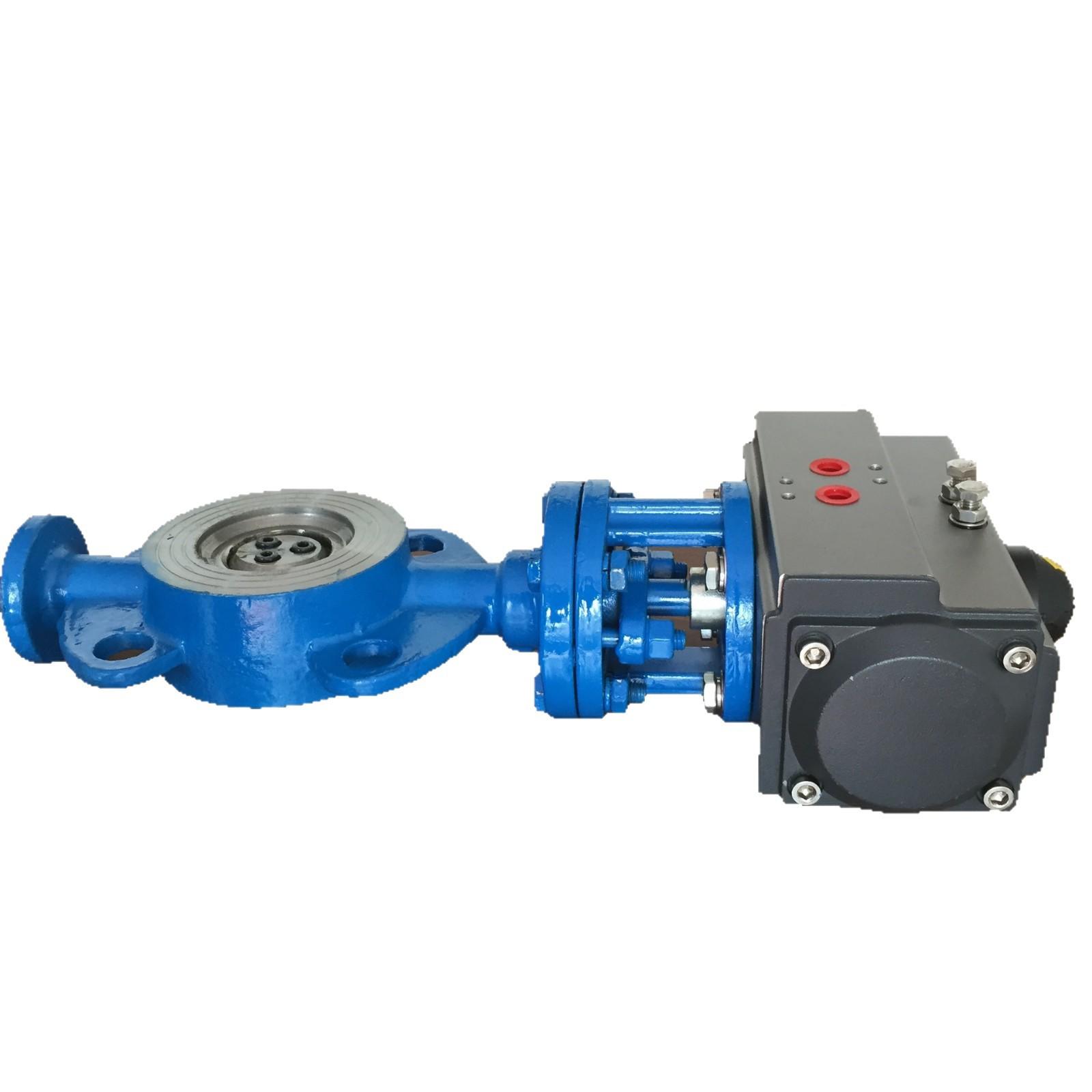

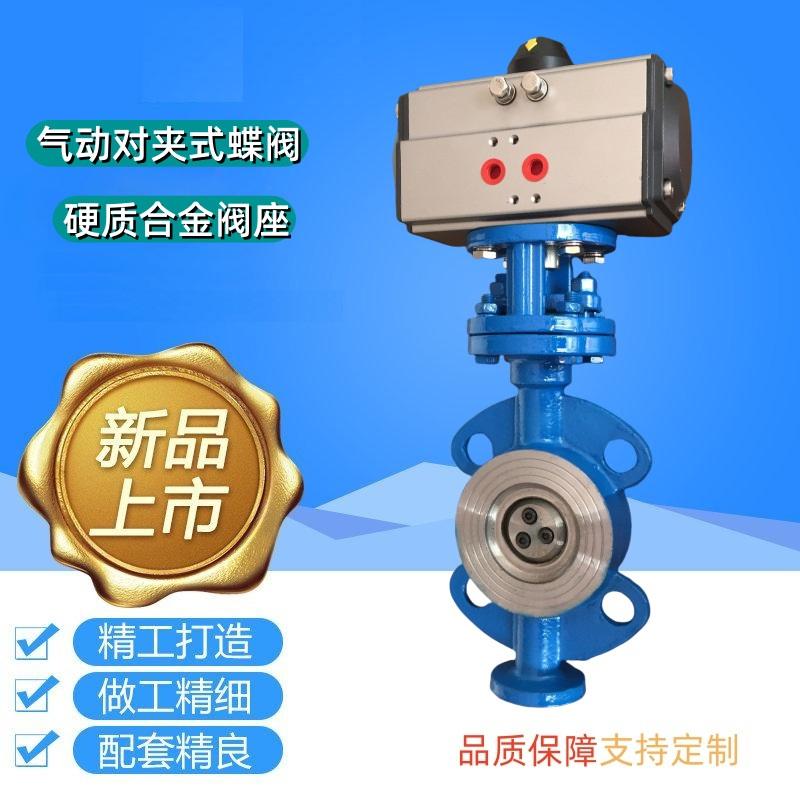

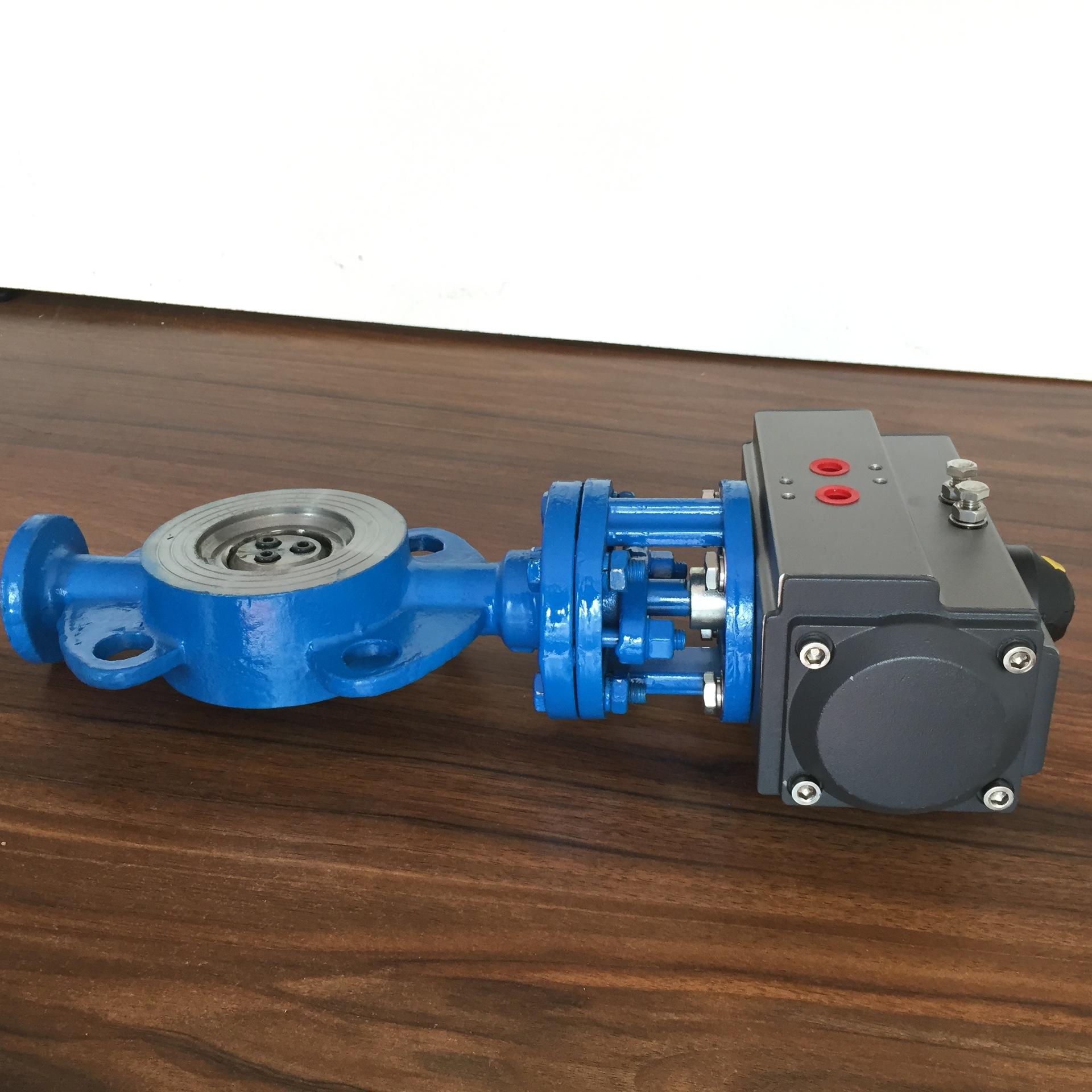

3" Carbon Steel Pneumatic Wafer Butterfly Valve

Description

The butterfly valve is used for on/off control and modulating control of the flow of water, air, and oil.
The 3" wafer butterfly valve is specifically designed to be mounted between two pipe flanges with ANSI standards.
The valve body is made of carbon steel, offering higher strength and durability than cast iron or ductile iron, and suitable for higher pressures and temperatures.
The high performance butterfly valve features a triple offset design, which allows it to operate at higher pressures and temperatures than concentric designs.
The valve is operated by a double acting pneumatic actuator that uses compressed air to open and close the valve with a quarter-turn motion, ensuring fast and reliable operation.
The valve uses a metal seat made of Duplex 2507, which ensures high strength, excellent corrosion resistance, and wear resistance.
The graphite stem seals provide reliable sealing around the stem in demanding environments due to their high-temperature tolerance, chemical inertness, and excellent compressibility.
The 316 stainless steel disc offers excellent corrosion resistance, durability, and strength.
The maximum operating pressure is 232 psi.
The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.

Product Name	3" triple offset metal seated pneumatic wafer butterfly valve
valve type	butterfly valve
Material	carbon steel
port	2-way
inlet connection size	3 inch
inlet connection type	wafer type
outlet connection size	3 inch
outlet connection type	wafer type
operation	pneumatic
stem seals	graphite
seat	metal seated (duplex 2507)
disc material	316 stainless steel
stem material	420 stainless steel
valve design	triple offset
maximum pressure	232 psi
best suited media	water, air, oil
Item Type	wafer butterfly valve
Features	high performance
Reference	S-548021894904
Brand	Hykins
