2-1/2" PVC Electric Wafer Butterfly Valve
Estimated price:
$
70.32
(Final price may vary and will be confirmed via quote.)
| Material | PVC |
| inlet connection size | 2-1/2 inch |
| inlet connection type | wafer type |
| operation | electric (24V DC) |

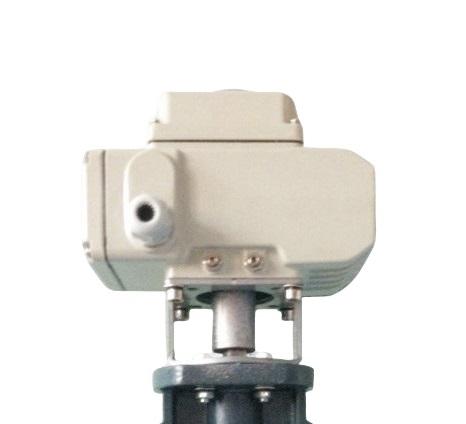

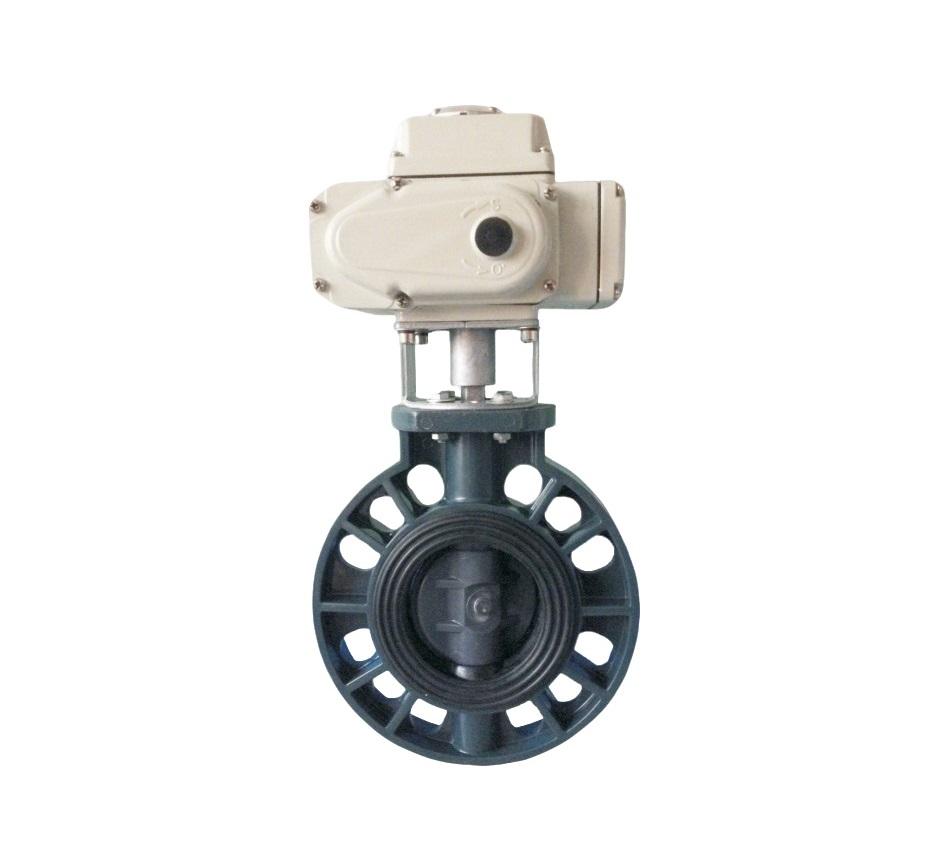

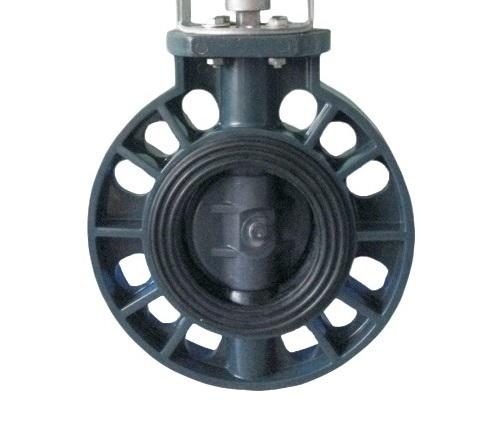

The 2-1/2" wafer butterfly valve is designed for both on/off and modulating flow control of water, air, and oil. It has a wafer-style body, allowing it to fit between two flanges in a pipeline. The valve body is made of PVC, providing outstanding corrosion resistance and lightweight durability. The valve is operated by an electric actuator powered by 24V DC, which opens and closes the valve with a quarter-turn motion, ensuring fast and reliable operation.
Ships worldwide (International shipping fees apply)
Estimated delivery in 5–10 days
In stock
Customizable
Description
- The 2-1/2" wafer butterfly valve is used for on/off control and modulating control of the flow of water, air, and oil.
- The 2-1/2" wafer butterfly valve is specifically designed to be mounted between two pipe flanges with ANSI standards.
- The valve body is made of PVC, providing outstanding corrosion resistance and lightweight durability. It features a PVC disc and a 316 stainless steel stem.
- The valve is operated by an electric actuator powered by 24V DC, which opens and closes the valve with a quarter-turn motion, ensuring fast and reliable operation. It supports both on/off control and modulating control.
- The Viton stem seals offer reliable, long-lasting sealing performance.
- The Viton seat ensures a durable and dependable seal, and enhances chemical and temperature resistance.
- The butterfly valve features a concentric design, in which the turning axis and axial alignment of the disc are both centered with the valve body, making it compact and cost-effective.
- The valve is rated ANSI Class 125, with a maximum working pressure of approximately 200 psi (at 100°F).
- The temperature range is from -25°C to 70°C.
- The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.
Specifications
| Product Name | 2-1/2" PVC electric wafer butterfly valve |
|---|---|
| valve type | butterfly valve |
| Material | PVC |
| port | 2-way |
| inlet connection size | 2-1/2 inch |
| inlet connection type | wafer type |
| outlet connection size | 2-1/2 inch |
| outlet connection type | wafer type |
| operation | electric (24V DC) |
| stem seals | FKM (Viton) |
| seat | FKM (Viton) |
| disc material | PVC |
| stem material | 316 stainless steel |
| valve design | concentric |
| pressure rating | ANSI Class 125 (200 psi @ 100°F) |
| best suited media | water, air, oil |
| temperature range | -25°C to 70°C |
| Item Type | wafer butterfly valve |
| Reference | S-1251994565 |
| Brand | Hykins |
Compare with similar items
|
This item: 2-1/2" PVC electric wafer butterfly valve
|
2" PVC electric wafer butterfly valve
|
10" PVC electric wafer butterfly valve
|
8" PVC electric wafer butterfly valve
|
|
| Customer Ratings | 4.0 (85) | 4.1 (61) | 4.2 (12) | 4.2 (17) |
| Price | $70.32 | $67.54 | $208.33 | $150.24 |
| valve type | butterfly valve | butterfly valve | butterfly valve | butterfly valve |
| port | 2-way | 2-way | 2-way | 2-way |
| port type | — | — | — | — |
| Material | PVC | PVC | PVC | PVC |
| inlet connection size | 2-1/2 inch | 2 inch | 10 inch | 8 inch |
| inlet connection type | wafer type | wafer type | wafer type | wafer type |
| operation | electric (24V DC) | electric (24V DC) | electric (24V DC) | electric (24V DC) |
| stem seals | FKM (Viton) | FKM (Viton) | NBR | NBR |
| seat | FKM (Viton) | FKM (Viton) | NBR | NBR |
