1/4" Lever Operated Socket PVC Ball Valve
Estimated price:
$
0.07
(Final price may vary and will be confirmed via quote.)
| Material | PVC |
| inlet connection size | 1/4 inch |
| inlet connection type | socket |
| operation | manual (lever handle) |
The 1/4" PVC ball valve is designed for both on/off flow control of water and compatible chemicals. It has a socket end connection, allowing it to be easily joined to PVC pipes using solvent cement. The valve body is made of PVC, offering cost-effective performance, strong corrosion resistance, lightweight durability, and dependable operation for low to medium pressure and temperature applications.
Ships worldwide (International shipping fees apply)
Estimated delivery in 5–15 days
In stock
Customizable
Description
- The 1/4" PVC ball valve is used for on/off control of the flow of water and compatible chemicals.
- The valve body is made of PVC, offering cost-effective performance, strong corrosion resistance, lightweight durability, and dependable operation for low to medium pressure and temperature applications. It features a PVC ball and a 304 stainless steel stem.

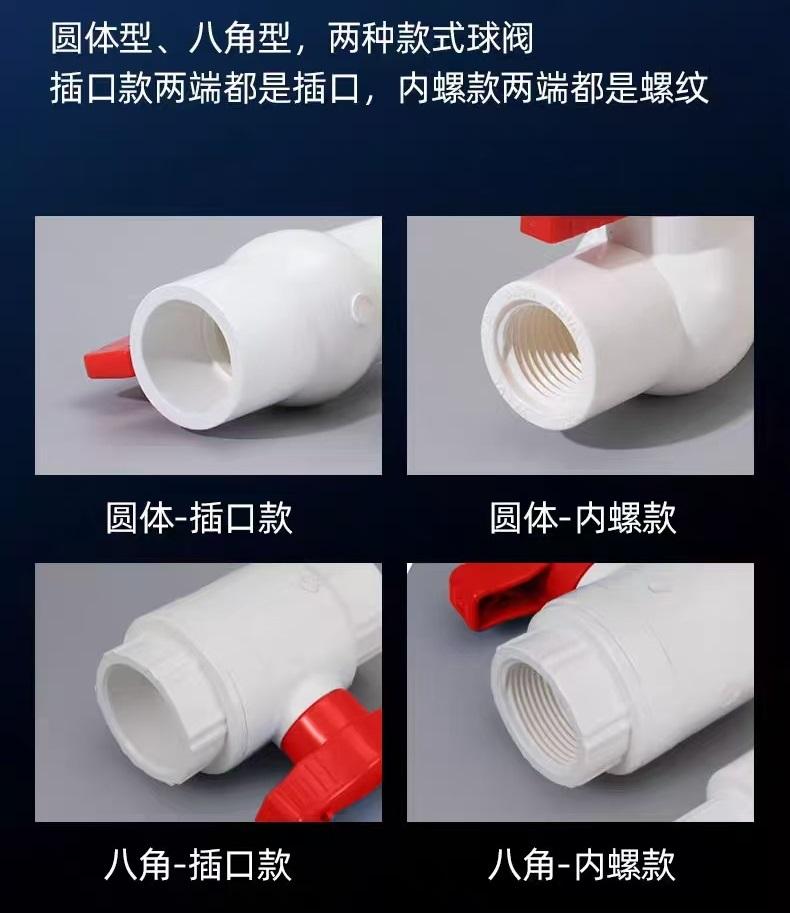

- The valve has a socket end connection, allowing it to be easily joined to PVC pipes using solvent cement for a secure and leak-resistant fit.
- The valve can be manually operated with a lever handle, allowing simple and quick quarter-turn operation to open or close the valve.
- The EPDM stem seals offer excellent resistance to water, steam, and mild chemicals, ensuring reliable sealing performance across a wide temperature range.
- The PTFE seat offers excellent sealing performance, even at low torque levels.
- The valve is rated ANSI Class 150, with a maximum working pressure of approximately 285 psi (at 100°F).
- Typical applications include water treatment, chemical processing, irrigation systems, and general industrial piping for non-aggressive fluids.
Specifications
| Product Name | 1/4" lever operated socket PVC ball valve |
|---|---|
| valve type | ball valve |
| Material | PVC |
| port | 2-way |
| inlet connection size | 1/4 inch |
| inlet connection type | socket |
| outlet connection size | 1/4 inch |
| outlet connection type | socket |
| operation | manual (lever handle) |
| stem seals | EPDM |
| seat | PTFE |
| ball material | PVC |
| stem material | 304 stainless steel |
| pressure rating | ANSI Class 150 (285 psi @ 100°F) |
| best suited media | water, compatible chemicals |
| Item Type | PVC ball valve |
| Reference | S-1026858941938 |
| Brand | Hykins |
Video
Compare with similar items
|
This item: 1/4" lever operated socket PVC ball valve
|
1-1/4" socket PVC ball valve
|
4" socket PVC ball valve
|
3/4" socket PVC ball valve
|
|
| Customer Ratings | 3.9 (36) | 3.8 (35) | 4.4 (83) | 4.0 (6) |
| Price | $0.07 | $0.58 | $6.98 | $0.23 |
| valve type | ball valve | ball valve | ball valve | ball valve |
| port | 2-way | 2-way | 2-way | 2-way |
| port type | — | — | — | — |
| Material | PVC | PVC | PVC | PVC |
| inlet connection size | 1/4 inch | 1-1/4 inch | 4 inch | 3/4 inch |
| inlet connection type | socket | socket | socket | socket |
| operation | manual (lever handle) | manual (lever handle) | manual (lever handle) | manual (lever handle) |
| stem seals | EPDM | EPDM | EPDM | EPDM |
| seat | PTFE | PTFE | PTFE | PTFE |
