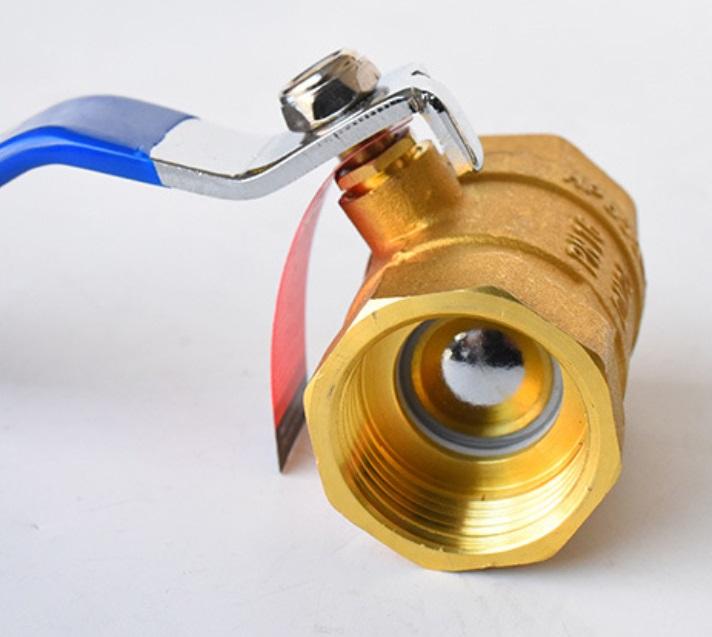

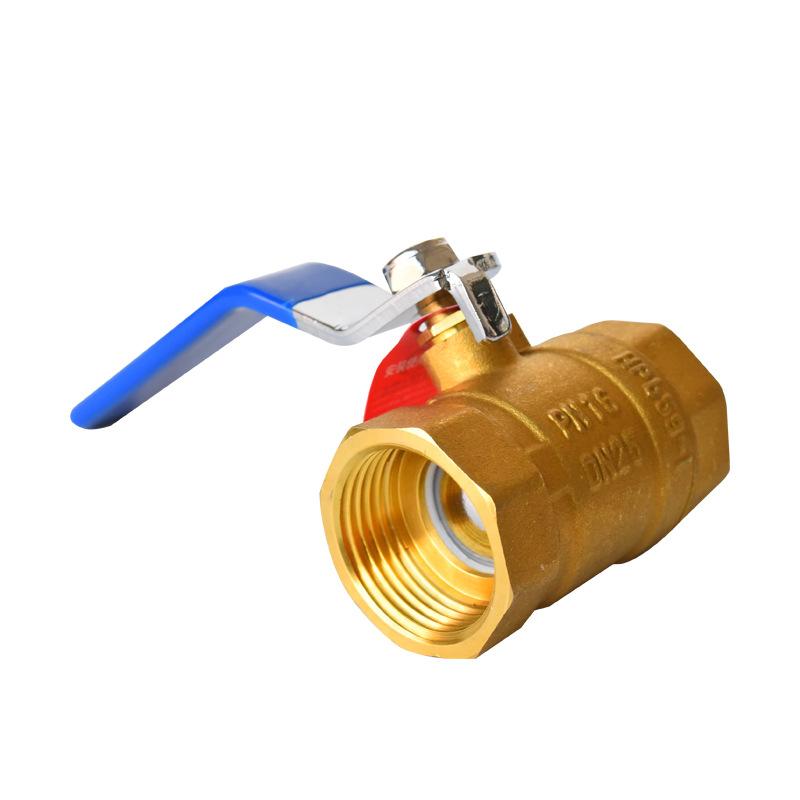

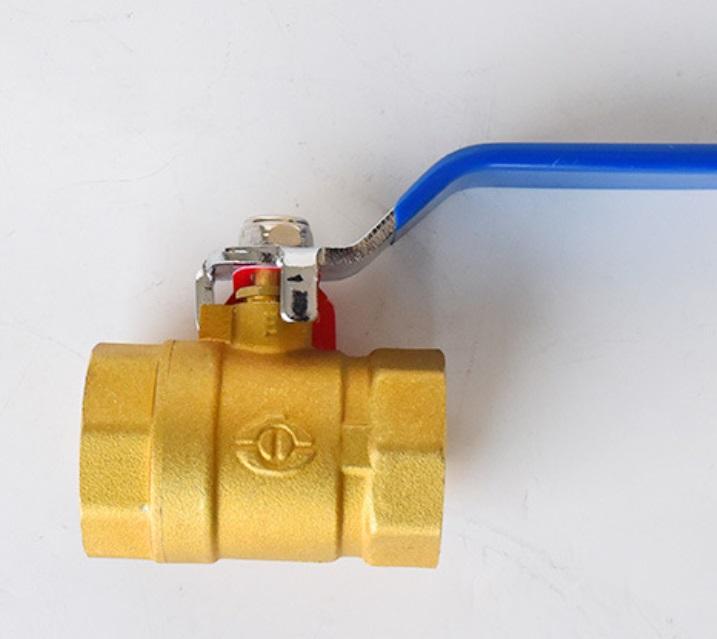

1-1/4" Lever Operated NPT Threaded Brass Ball Valve
Estimated price:
$
3.83
(Final price may vary and will be confirmed via quote.)
| Material | brass |
| inlet connection size | 1-1/4 inch |
| inlet connection type | NPT female threaded |
| operation | manual (lever handle) |
The 1-1/4" brass ball valve is designed for on/off flow control of water, air, and oil. It has an NPT female threaded body, allowing it to be directly screwed onto male-threaded pipe ends. The valve body is made of brass, providing good corrosion resistance, excellent machinability, and reliable performance for low to medium pressure and temperature applications. The valve can be manually operated with a lever handle, allowing simple and quick quarter-turn operation to open or close the valve.
Ships worldwide (International shipping fees apply)
Estimated delivery in 5–15 days
In stock
Customizable
Description
- The 1-1/4" brass ball valve is used for on/off control of the flow of water, air, and oil.
- The valve body is made of brass, providing good corrosion resistance, excellent machinability, and reliable performance for low to medium pressure and temperature applications. It features a 316 stainless steel ball and a 316 stainless steel stem.
- The NPT female threaded ball valve is specifically designed to be installed with male NPT pipe threads in accordance with standard piping practices.
- The valve can be manually operated with a lever handle, allowing simple and quick quarter-turn operation to open or close the valve.
- The PTFE stem seals offer enhanced corrosion resistance and a long service life.
- The PTFE seat offers excellent sealing performance, even at low torque levels.
- The valve is rated ANSI Class 150, with a maximum working pressure of approximately 285 psi (at 100°F).
- The 2-way brass ball valve is mainly used for water, irrigation, pump, hose, heating and general plumbing systems.
Specifications
| Product Name | 1-1/4" lever operated NPT threaded brass ball valve |
|---|---|
| valve type | ball valve |
| Material | brass |
| port | 2-way |
| port type | standard port |
| inlet connection size | 1-1/4 inch |
| inlet connection type | NPT female threaded |
| outlet connection size | 1-1/4 inch |
| outlet connection type | NPT female threaded |
| operation | manual (lever handle) |
| stem seals | PTFE |
| seat | PTFE |
| ball material | 316 stainless steel |
| stem material | 316 stainless steel |
| valve design | two-piece |
| pressure rating | ANSI Class 150 (285 psi @ 100°F) |
| best suited media | water, air, oil |
| temperature range | -29°C to 120°C |
| Item Type | brass ball valve |
| Features | high temperature |
| Reference | S-707982495425 |
| Brand | Hykins |
Video
Compare with similar items
|
This item: 1-1/4" lever operated NPT threaded brass ball valve
|
1/4" lever operated NPT threaded brass ball valve
|
1-3/4" lever operated NPT threaded brass ball valve
|
1/4" lever operated NPT threaded brass ball valve
|
|
| Customer Ratings | 4.5 (99) | 3.5 (29) | 4.2 (29) | 4.9 (33) |
| Price | $3.83 | $0.68 | $13.21 | $0.65 |
| valve type | ball valve | ball valve | ball valve | ball valve |
| port | 2-way | 2-way | 2-way | 2-way |
| port type | standard port | standard port | — | — |
| Material | brass | brass | brass | brass |
| inlet connection size | 1-1/4 inch | 1/4 inch | 1-3/4 inch | 1/4 inch |
| inlet connection type | NPT female threaded | NPT female threaded | NPT female threaded | NPT female threaded |
| operation | manual (lever handle) | manual (lever handle) | manual (lever handle) | manual (lever handle) |
| stem seals | PTFE | PTFE | EPDM | EPDM |
| seat | PTFE | PTFE | PTFE | PTFE |
