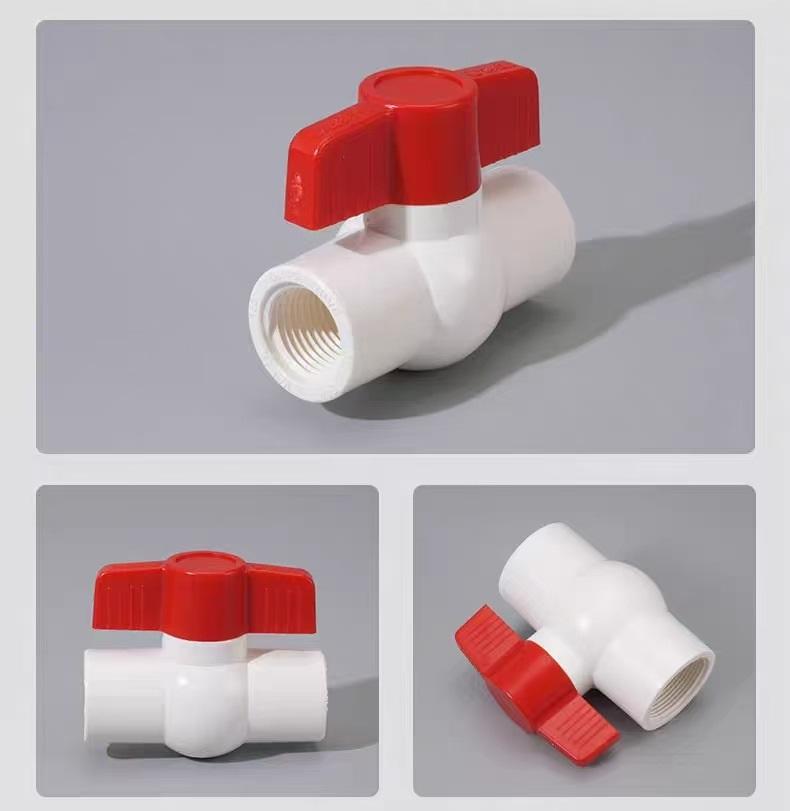

3" NPT Threaded PVC Ball Valve

Estimated price: $ 4.16

(Final price may vary and will be confirmed via quote.)

3.8 out of 5, based on 58 reviews

Material	PVC
inlet connection size	3 inch
inlet connection type	NPT female threaded
operation	manual (lever handle)

View All Specifications

The 3" PVC ball valve is designed for both on/off flow control of water and compatible chemicals. It has an NPT female threaded body, allowing it to be directly screwed onto male-threaded pipe ends. The valve body is made of PVC, offering cost-effective performance, strong corrosion resistance, lightweight durability, and dependable operation for low to medium pressure and temperature applications.

View Full Description

Ships worldwide (International shipping fees apply)

Estimated delivery in 5–15 days

In stock

Quantity

Customizable

Note: The price shown on this page is an estimated price only. The final price may vary depending on your order quantity, customization requirements, and other factors. For an accurate quote, please click the Get a Quote button above, or contact us directly via email or WhatsApp.

Description

The 3" PVC ball valve is used for on/off control of the flow of water and compatible chemicals.
The valve body is made of PVC, offering cost-effective performance, strong corrosion resistance, lightweight durability, and dependable operation for low to medium pressure and temperature applications. It features a PVC ball and a 316 stainless steel stem.
The NPT female threaded ball valve is specifically designed to be installed with male NPT pipe threads in accordance with standard piping practices.
The valve can be manually operated with a lever handle, allowing simple and quick quarter-turn operation to open or close the valve.
The EPDM stem seals offer excellent resistance to water, steam, and mild chemicals, ensuring reliable sealing performance across a wide temperature range.
The PTFE seat offers excellent sealing performance, even at low torque levels.
The valve is rated ANSI Class 150, with a maximum working pressure of approximately 285 psi (at 100°F).
Typical applications include water treatment, chemical processing, irrigation systems, and general industrial piping for non-aggressive fluids.

Specifications

Product Name	3" NPT threaded PVC ball valve
valve type	ball valve
Material	PVC
port	2-way
inlet connection size	3 inch
inlet connection type	NPT female threaded
outlet connection size	3 inch
outlet connection type	NPT female threaded
operation	manual (lever handle)
stem seals	EPDM
seat	PTFE
ball material	PVC
stem material	316 stainless steel
pressure rating	ANSI Class 150 (285 psi @ 100°F)
best suited media	water, compatible chemicals
Item Type	PVC ball valve
Reference	S-1026858941938
Brand	Hykins
