3/8" NPT Threaded PVC Ball Valve

Description

The 3/8" PVC ball valve is used for on/off control of the flow of water and compatible chemicals.
The valve body is made of PVC, offering cost-effective performance, strong corrosion resistance, lightweight durability, and dependable operation for low to medium pressure and temperature applications. It features a PVC ball and a 304 stainless steel stem.

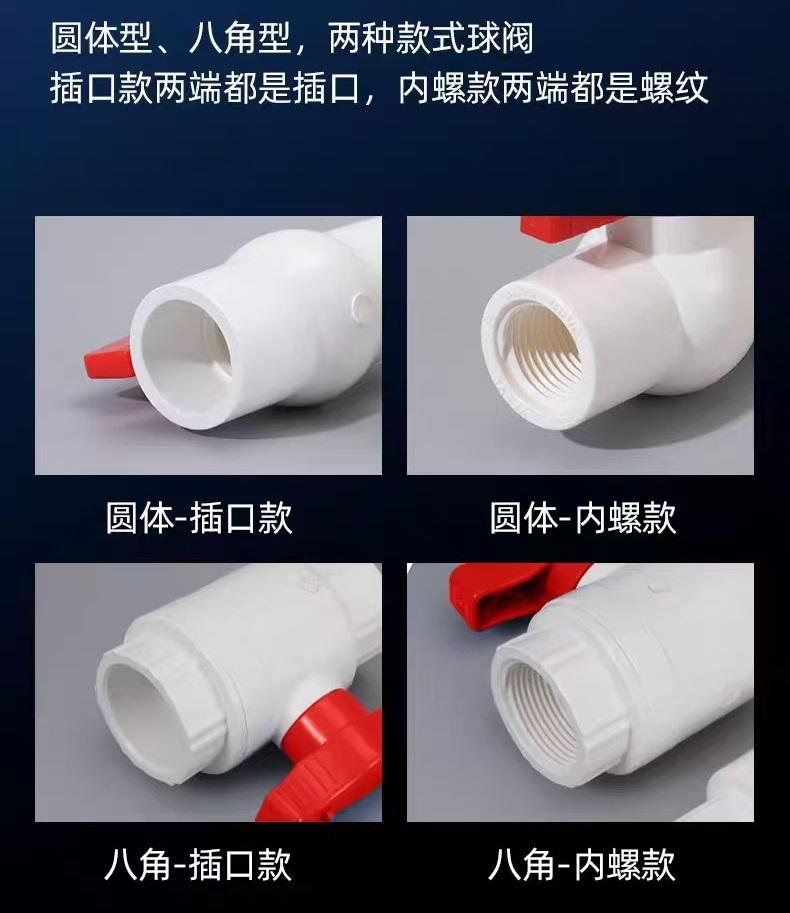

The NPT female threaded ball valve is specifically designed to be installed with male NPT pipe threads in accordance with standard piping practices.
The valve can be manually operated with a lever handle, allowing simple and quick quarter-turn operation to open or close the valve.
The EPDM stem seals offer excellent resistance to water, steam, and mild chemicals, ensuring reliable sealing performance across a wide temperature range.
The PTFE seat offers excellent sealing performance, even at low torque levels.
The valve is rated ANSI Class 150, with a maximum working pressure of approximately 285 psi (at 100°F).
Typical applications include water treatment, chemical processing, irrigation systems, and general industrial piping for non-aggressive fluids.

	This item: 3/8" NPT threaded PVC ball valve	3/8" electric NPT threaded brass ball valve	3/8" lever operated NPT threaded brass ball valve	3/8" lever operated NPT threaded brass ball valve

Customer Ratings	3.9 (73)	4.9 (7)	4.5 (11)	4.0 (75)
Price	$0.11	$7.13	$0.98	$1.05
valve type	ball valve	ball valve	ball valve	ball valve
port	2-way	2-way	2-way	2-way
port type	—	—	standard port	—
Material	PVC	brass	brass	brass
inlet connection size	3/8 inch	3/8 inch	3/8 inch	3/8 inch
inlet connection type	NPT female threaded	NPT female threaded	NPT female threaded	NPT female threaded
operation	manual (lever handle)	electric (12V DC)	manual (lever handle)	manual (lever handle)
stem seals	EPDM	NBR	PTFE	EPDM
seat	PTFE	PTFE	PTFE	PTFE
