1/8" Lever Operated NPT Threaded Brass Ball Valve

Description

The 1/8" brass ball valve is used for on/off control of the flow of water, air, and oil.
The valve body is made of brass, providing good corrosion resistance, excellent machinability, and reliable performance for low to medium pressure and temperature applications. It features a chrome plated brass ball and a brass stem.

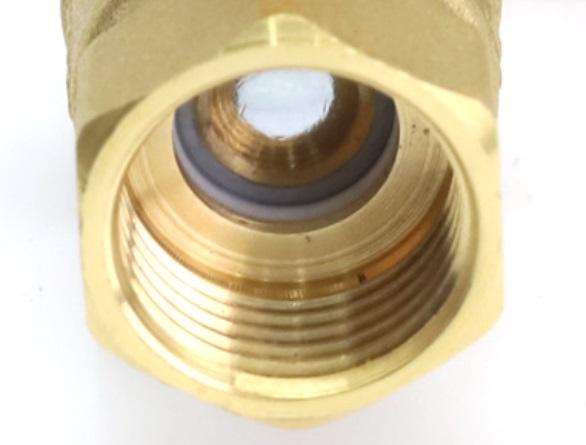

The NPT female threaded ball valve is specifically designed to be installed with male NPT pipe threads in accordance with standard piping practices.

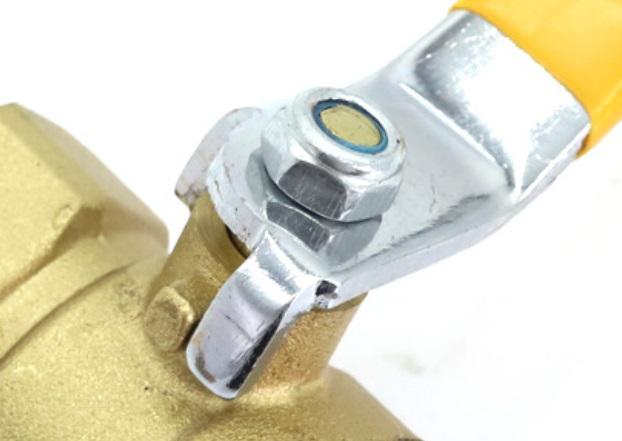

The valve can be manually operated with a lever handle, allowing simple and quick quarter-turn operation to open or close the valve.
The EPDM stem seals offer excellent resistance to water, steam, and mild chemicals, ensuring reliable sealing performance across a wide temperature range.
The PTFE seat offers excellent sealing performance, even at low torque levels.
The valve is rated ANSI Class 300, with a maximum working pressure of approximately 740 psi (at 100°F).
The 2-way brass ball valve is mainly used for water, irrigation, pump, hose, heating and general plumbing systems.

Product Name	1/8" lever operated NPT threaded brass ball valve
valve type	ball valve
Material	brass
port	2-way
inlet connection size	1/8 inch
inlet connection type	NPT female threaded
outlet connection size	1/8 inch
outlet connection type	NPT female threaded
operation	manual (lever handle)
stem seals	EPDM
seat	PTFE
ball material	chrome plated brass
stem material	brass
valve design	two-piece
pressure rating	ANSI Class 300 (740 psi @ 100°F)
best suited media	water, air, oil
Item Type	brass ball valve
Reference	S-691480001279
Brand	Hykins

	This item: 1/8" lever operated NPT threaded brass ball valve	1/8" lever operated NPT threaded brass ball valve	1-1/8" lever operated NPT threaded brass ball valve	1-1/8" lever operated NPT threaded brass ball valve

Customer Ratings	3.9 (95)	4.0 (90)	4.9 (40)	4.3 (25)
Price	$0.35	$0.44	$2.85	$5.11
valve type	ball valve	ball valve	ball valve	ball valve
port	2-way	2-way	2-way	2-way
port type	—	standard port	standard port	—
Material	brass	brass	brass	brass
inlet connection size	1/8 inch	1/8 inch	1-1/8 inch	1-1/8 inch
inlet connection type	NPT female threaded	NPT female threaded	NPT female threaded	NPT female threaded
operation	manual (lever handle)	manual (lever handle)	manual (lever handle)	manual (lever handle)
stem seals	EPDM	PTFE	PTFE	EPDM
seat	PTFE	PTFE	PTFE	PTFE
