8" Cast Iron Lug Butterfly Valve
Estimated price:
$
68.52
(Final price may vary and will be confirmed via quote.)
| Material | cast iron |
| inlet connection size | 8 inch |
| inlet connection type | lug type |
| operation | manual (lever handle) |

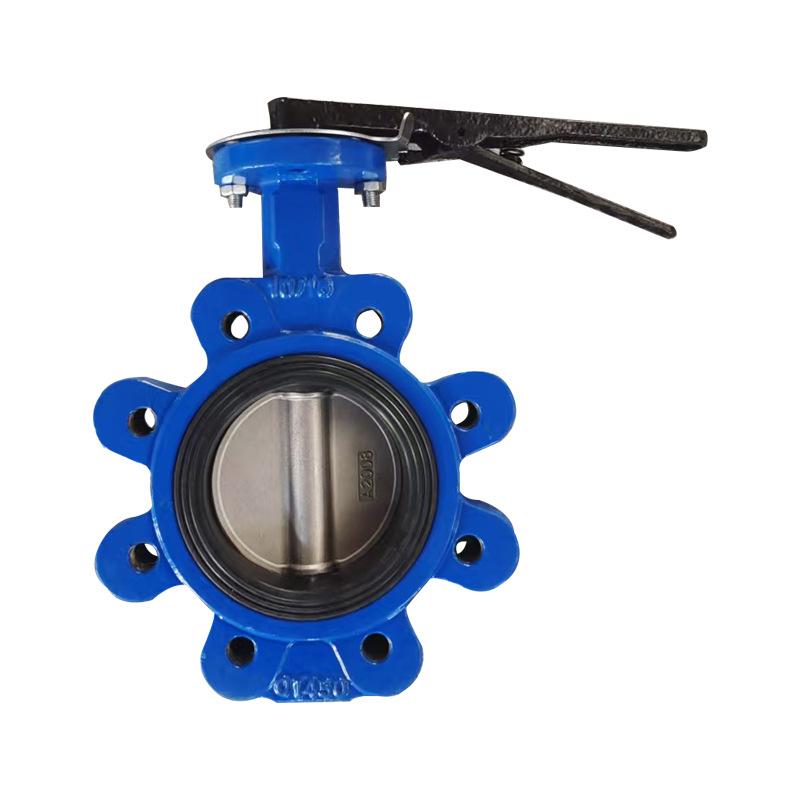

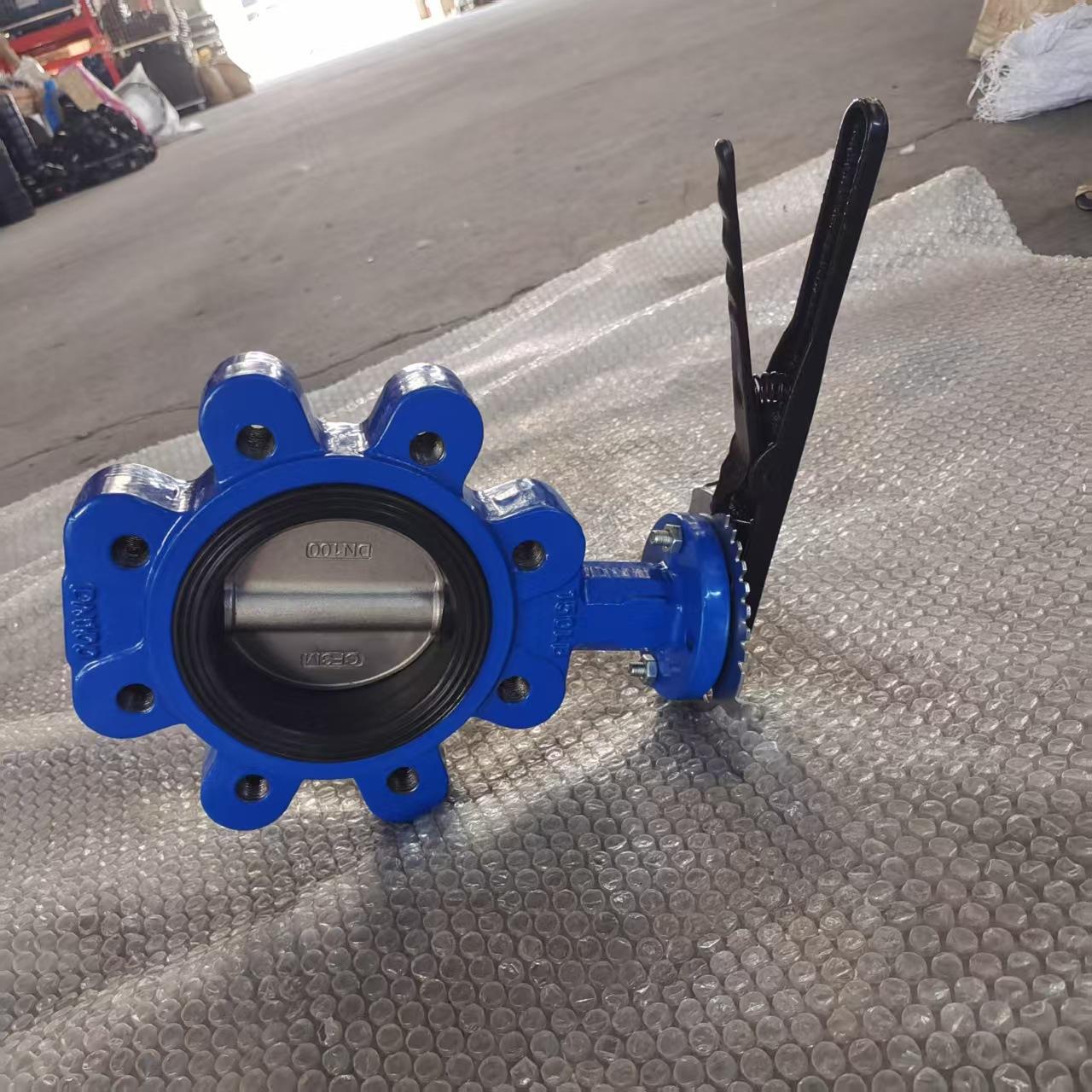

The 8" lug butterfly valve is designed for on/off flow control of water, air, and oil. It has a lug-style body with threaded lugs, allowing it to be installed between two flanges in a pipeline using bolts. The valve has an epoxy-coated cast iron body, with 316 stainless steel disc and 420 stainless steel stem. The seals are made of NBR. The valve is manually operated with a quarter-turn lever handle.
Ships worldwide (International shipping fees apply)
Estimated delivery in 3–10 days
In stock
Customizable
Description
- The butterfly valve is used for on/off control or modulating the flow of water, air, and oil.
- The 8" lug butterfly valve is designed to be mounted between two ANSI-standard pipe flanges and is suitable for end-of-line use.
- The valve body is made of cast iron, with epoxy coating for enhanced corrosion resistance and extended service life.
- The butterfly valve features a concentric design, in which the turning axis and axial alignment of the disc are both centered with the valve body, making it compact and cost-effective.
- The valve can be manually operated with a lever handle, allowing simple and quick quarter-turn operation to open or close the valve.
- The NBR stem seals provide reliable sealing performance and resistance to oils, water, and hydraulic fluids.
- The NBR seat offers a tight seal and good wear resistance.
- The 316 stainless steel disc offers excellent corrosion resistance, durability, and strength.
- The maximum operating pressure is 232 psi.
- The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.
Specifications
| Product Name | 8" cast iron lug butterfly valve |
|---|---|
| valve type | butterfly valve |
| Material | cast iron |
| port | 2-way |
| inlet connection size | 8 inch |
| inlet connection type | lug type |
| outlet connection size | 8 inch |
| outlet connection type | lug type |
| operation | manual (lever handle) |
| stem seals | NBR |
| seat | NBR |
| disc material | 316 stainless steel |
| stem material | 420 stainless steel |
| valve design | concentric |
| maximum pressure | 232 psi |
| best suited media | water, air, oil |
| Item Type | lug butterfly valve |
| Features | cast iron body with epoxy coating |
| Reference | S-920734652856 |
| Brand | Hykins |
