4" Cast Iron Wafer Butterfly Valve
$
50.24
| Material | cast iron |
| inlet connection size | 4 inch |
| inlet connection type | wafer type |
| operation | pneumatic |

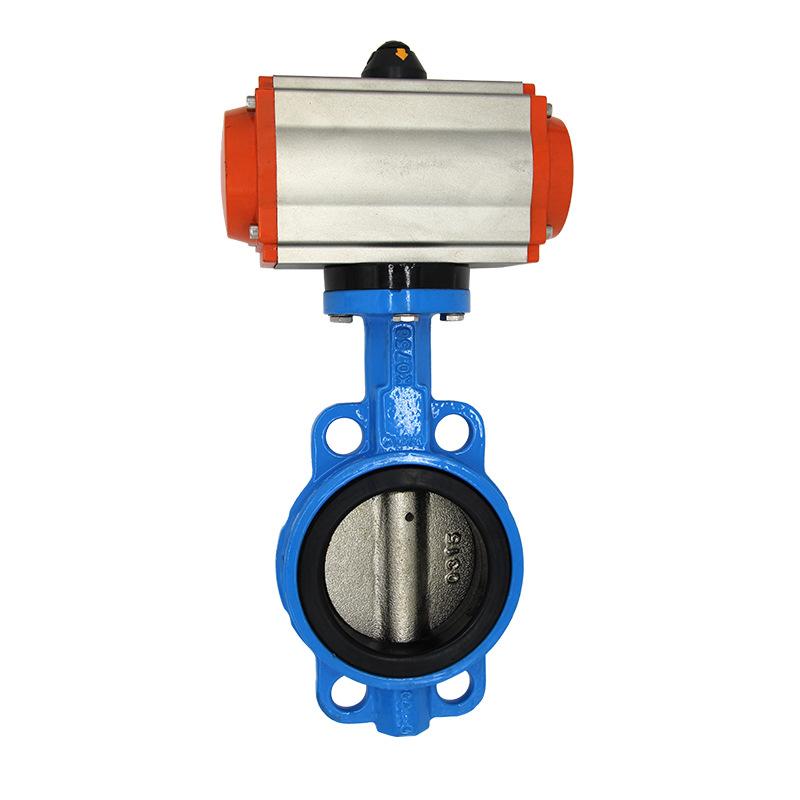

The 4" wafer butterfly valve is designed for on/off flow control of water, air, and oil. It has a wafer-style body, allowing it to fit between two flanges in a pipeline. The valve has an epoxy-coated cast iron body, with 316 stainless steel disc and 420 stainless steel stem. The seals are made of rubber. The valve is operated by a double-acting, quarter-turn pneumatic actuator.
Ships worldwide (International shipping fees apply)
Estimated delivery in 5–20 days
In stock
Note: This price applies to in-stock items available in limited quantities, typically offered as samples. For customized products or bulk orders, please request a quote via the shopping cart page or contact us by email.
Description
- The butterfly valve is used for on/off control or modulating the flow of water, air, and oil.
- The 4" wafer butterfly valve is specifically designed to be mounted between two pipe flanges with ANSI standards.

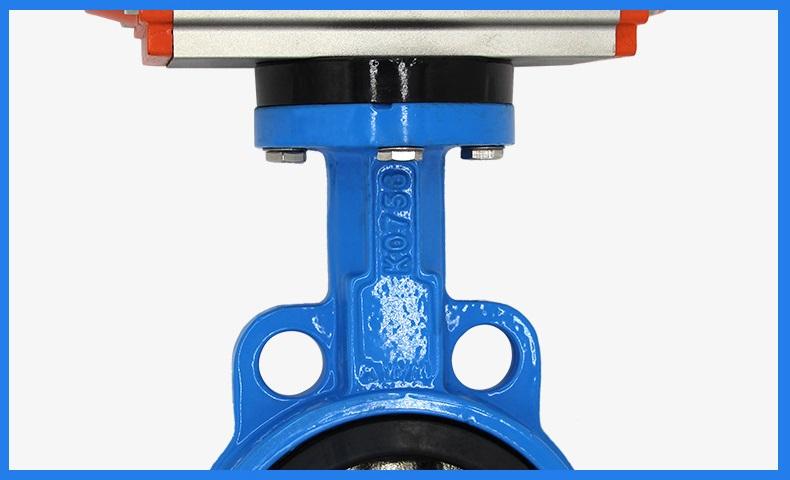

- The valve body is made of cast iron, with epoxy coating for enhanced corrosion resistance and extended service life.
- The butterfly valve features a concentric design, in which the turning axis and axial alignment of the disc are both centered with the valve body, making it compact and cost-effective.

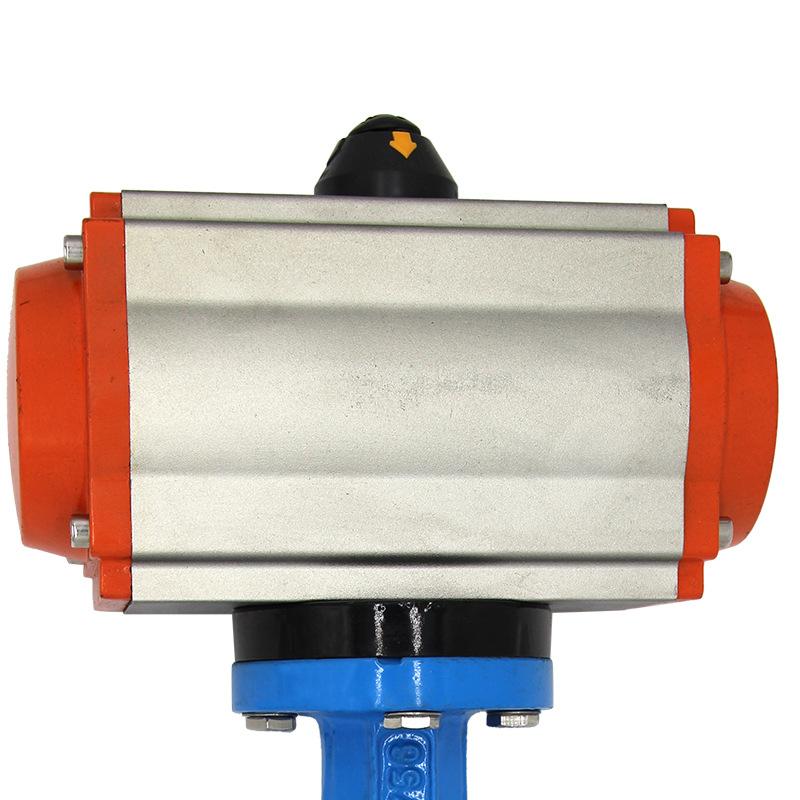

- The valve is operated by a double acting pneumatic actuator that uses compressed air to open and close the valve with a quarter-turn motion, ensuring fast and reliable operation.
- The rubber stem seals offer low-friction sealing that ensures smooth stem rotation or movement while maintaining a tight seal.
- The rubber seat ensures tight sealing, corrosion resistance, and durability.
- The 316 stainless steel disc offers excellent corrosion resistance, durability, and strength.
- The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.
Specifications
| Product Name | 4" cast iron wafer butterfly valve |
|---|---|
| valve type | butterfly valve |
| Material | cast iron |
| port | 2-way |
| inlet connection size | 4 inch |
| inlet connection type | wafer type |
| outlet connection size | 4 inch |
| outlet connection type | wafer type |
| operation | pneumatic |
| stem seals | rubber |
| seat | rubber |
| disc material | 316 stainless steel |
| stem material | 420 stainless steel |
| valve design | concentric |
| maximum pressure | 145 psi (PN10) |
| best suited media | water, air, oil |
| Item Type | wafer butterfly valve |
| Features | cast iron body with epoxy coating |
| Brand Name | Hykins Basics |
Video
Compare with similar items
|
This item: 4" cast iron wafer butterfly valve
|
4" carbon steel pneumatic wafer butterfly valve
|
5" cast iron pneumatic wafer butterfly valve
|
6" pneumatic wafer butterfly valve
|
|
| Customer Ratings | 4.1 (57) | 4.8 (13) | 4.8 (35) | 4.1 (87) |
| Price | $50.24 | $50.24 | $75.88 | $80.98 |
| valve type | butterfly valve | butterfly valve | butterfly valve | butterfly valve |
| port | 2-way | 2-way | 2-way | 2-way |
| port type | — | — | — | — |
| Material | cast iron | carbon steel | cast iron | cast iron |
| inlet connection size | 4 inch | 4 inch | 5 inch | 6 inch |
| inlet connection type | wafer type | wafer type | wafer type | wafer type |
| operation | pneumatic | pneumatic | pneumatic | with pneumatic actuator |
| stem seals | rubber | graphite | rubber | FKM (Viton) |
| seat | rubber | metal seated (duplex 2507) | rubber | FKM (Viton) |
