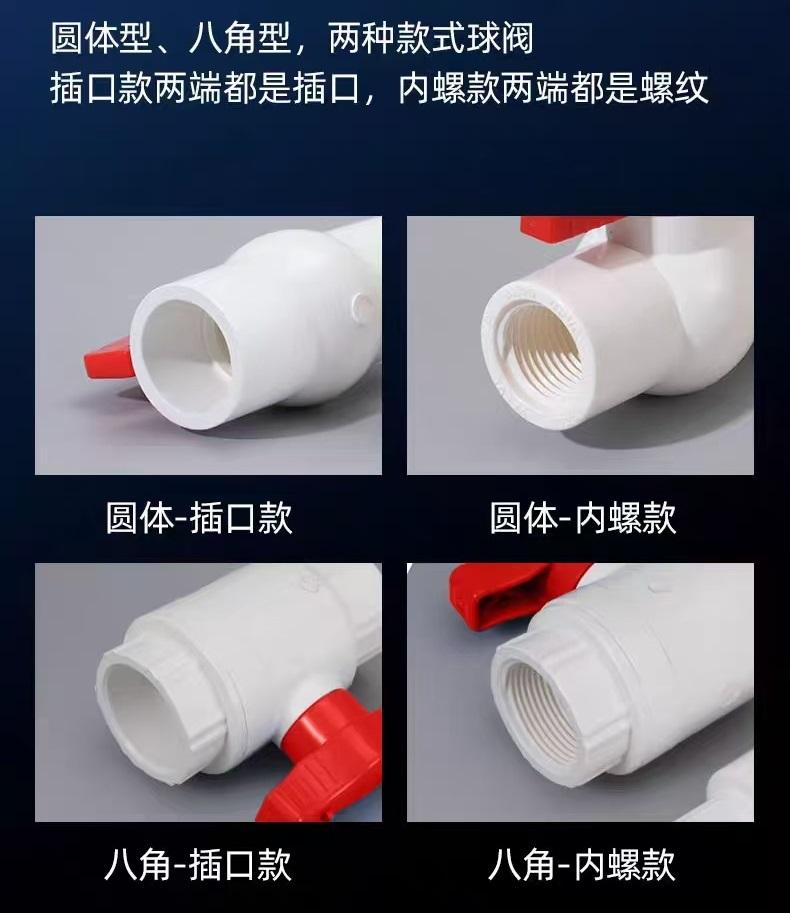

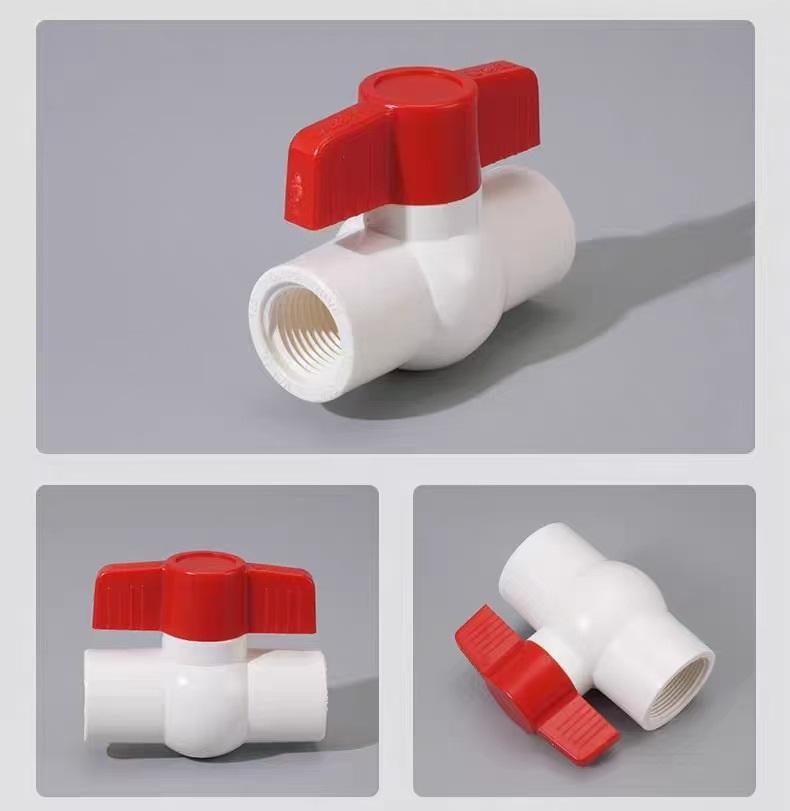

3/8" Lever Operated Socket PVC Ball Valve

Description

The 3/8" PVC ball valve is used for on/off control of the flow of water and compatible chemicals.
The valve body is made of PVC, offering cost-effective performance, strong corrosion resistance, lightweight durability, and dependable operation for low to medium pressure and temperature applications. It features a PVC ball and a 304 stainless steel stem.
The valve has a socket end connection, allowing it to be easily joined to PVC pipes using solvent cement for a secure and leak-resistant fit.
The valve can be manually operated with a lever handle, allowing simple and quick quarter-turn operation to open or close the valve.
The EPDM stem seals offer excellent resistance to water, steam, and mild chemicals, ensuring reliable sealing performance across a wide temperature range.
The PTFE seat offers excellent sealing performance, even at low torque levels.
The valve is rated ANSI Class 150, with a maximum working pressure of approximately 285 psi (at 100°F).
Typical applications include water treatment, chemical processing, irrigation systems, and general industrial piping for non-aggressive fluids.

Product Name	3/8" lever operated socket PVC ball valve
valve type	ball valve
Material	PVC
port	2-way
inlet connection size	3/8 inch
inlet connection type	socket
outlet connection size	3/8 inch
outlet connection type	socket
operation	manual (lever handle)
stem seals	EPDM
seat	PTFE
ball material	PVC
stem material	304 stainless steel
pressure rating	ANSI Class 150 (285 psi @ 100°F)
best suited media	water, compatible chemicals
Item Type	PVC ball valve
Reference	S-1026858941938
Brand	Hykins

	This item: 3/8" lever operated socket PVC ball valve	3/8" lever operated NPT threaded brass ball valve	3/8" lever operated NPT threaded brass ball valve	3/8" NPT threaded PVC ball valve

Customer Ratings	3.6 (24)	4.5 (11)	4.0 (75)	3.9 (73)
Price	$0.11	$0.98	$1.05	$0.11
valve type	ball valve	ball valve	ball valve	ball valve
port	2-way	2-way	2-way	2-way
port type	—	standard port	—	—
Material	PVC	brass	brass	PVC
inlet connection size	3/8 inch	3/8 inch	3/8 inch	3/8 inch
inlet connection type	socket	NPT female threaded	NPT female threaded	NPT female threaded
operation	manual (lever handle)	manual (lever handle)	manual (lever handle)	manual (lever handle)
stem seals	EPDM	PTFE	EPDM	EPDM
seat	PTFE	PTFE	PTFE	PTFE
