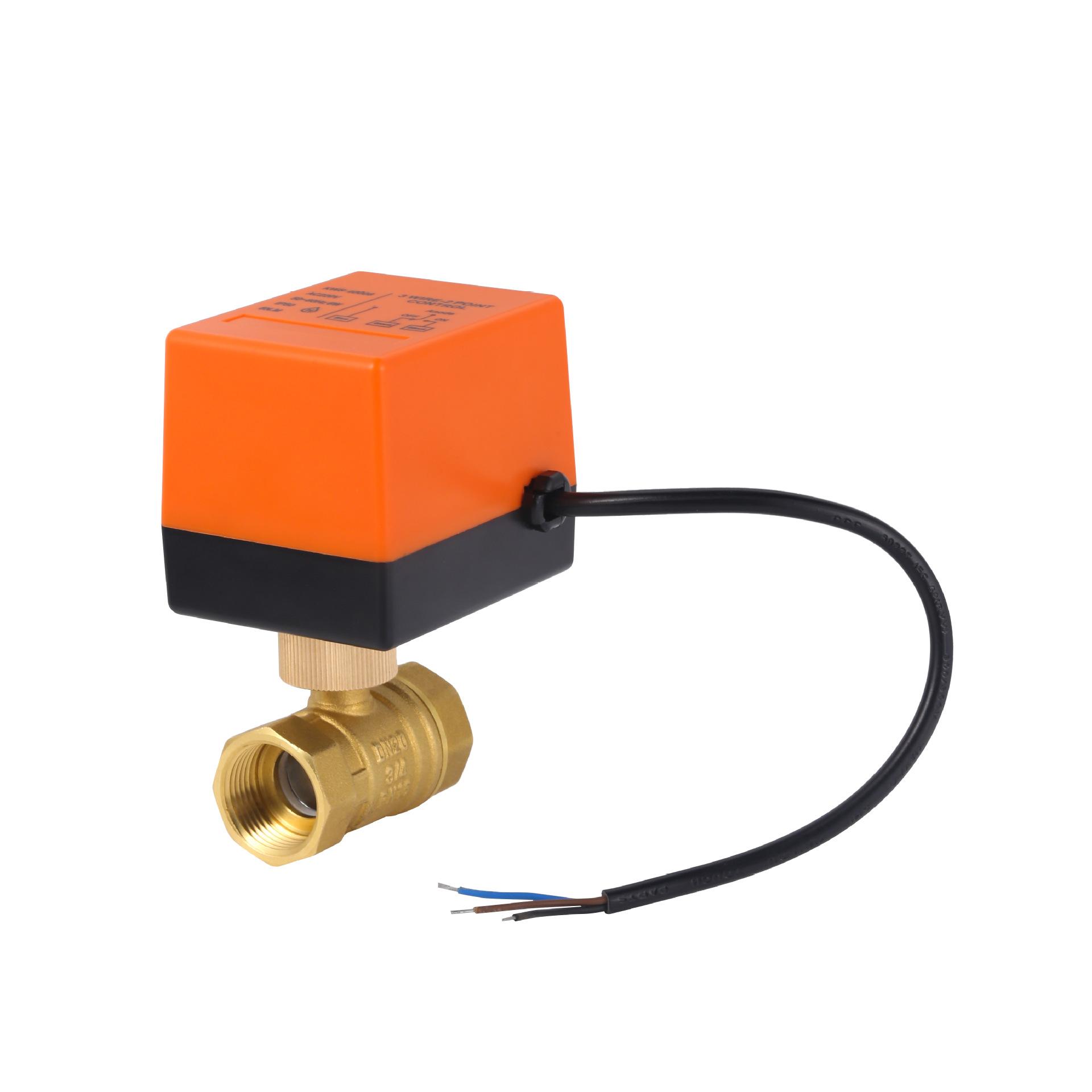

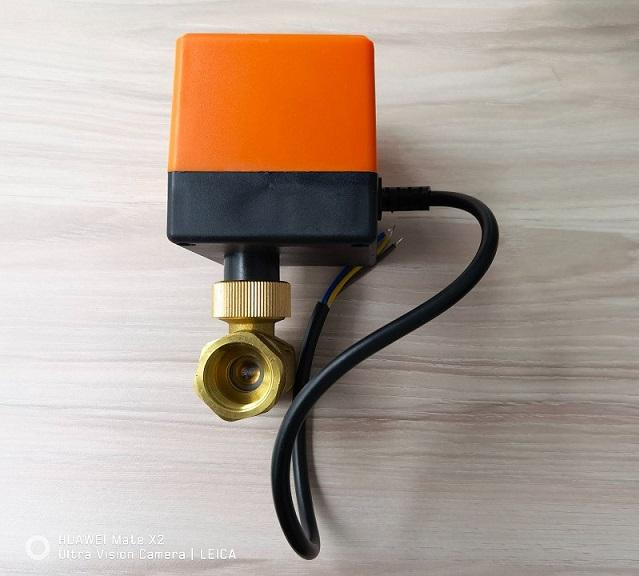

1-1/2" Electric NPT Threaded Brass Ball Valve
Estimated price:
$
14.52
(Final price may vary and will be confirmed via quote.)
| Material | brass |
| inlet connection size | 1-1/2 inch |
| inlet connection type | NPT female threaded |
| operation | electric (24V DC) |
The 1-1/2" brass ball valve is designed for both on/off and modulating flow control of water, air, and oil. It has an NPT female threaded body, allowing it to be directly screwed onto male-threaded pipe ends. The valve body is made of brass, providing good corrosion resistance, excellent machinability, and reliable performance for low to medium pressure and temperature applications. The valve is operated by an electric actuator powered by 24V DC, which opens and closes the valve with a quarter-turn motion, ensuring fast and reliable operation.
Ships worldwide (International shipping fees apply)
Estimated delivery in 5–15 days
In stock
Customizable
Description
- The 1-1/2" brass ball valve is used for on/off control and modulating control of the flow of water, air, and oil.
- The valve body is made of brass, providing good corrosion resistance, excellent machinability, and reliable performance for low to medium pressure and temperature applications. It features a 316 stainless steel ball and a 316 stainless steel stem.
- The NPT female threaded ball valve is specifically designed to be installed with male NPT pipe threads in accordance with standard piping practices.
- The valve is operated by an electric actuator powered by 24V DC, which opens and closes the valve with a quarter-turn motion, ensuring fast and reliable operation. It supports both on/off control and modulating control.
- The NBR stem seals provide reliable sealing performance and resistance to oils, water, and hydraulic fluids.
- The PTFE seat offers excellent sealing performance, even at low torque levels.
- The valve is rated ANSI Class 150, with a maximum working pressure of approximately 285 psi (at 100°F).
- Typical applications include water heater, sprinkler, washing machine, and shower.
Specifications
| Product Name | 1-1/2" electric NPT threaded brass ball valve |
|---|---|
| valve type | ball valve |
| Material | brass |
| port | 2-way |
| inlet connection size | 1-1/2 inch |
| inlet connection type | NPT female threaded |
| outlet connection size | 1-1/2 inch |
| outlet connection type | NPT female threaded |
| operation | electric (24V DC) |
| stem seals | NBR |
| seat | PTFE |
| ball material | 316 stainless steel |
| stem material | 316 stainless steel |
| pressure rating | ANSI Class 150 (285 psi @ 100°F) |
| best suited media | water, air, oil |
| Item Type | brass ball valve |
| Reference | S-649985085910 |
| Brand | Hykins |
Video
Compare with similar items
|
This item: 1-1/2" electric NPT threaded brass ball valve
|
1/2" electric NPT threaded brass ball valve
|
1" electric NPT threaded brass ball valve
|
1-1/4" electric NPT threaded brass ball valve
|
|
| Customer Ratings | 4.2 (18) | 3.7 (60) | 4.6 (48) | 3.9 (44) |
| Price | $14.52 | $7.83 | $9.33 | $12.61 |
| valve type | ball valve | ball valve | ball valve | ball valve |
| port | 2-way | 2-way | 2-way | 2-way |
| port type | — | — | — | — |
| Material | brass | brass | brass | brass |
| inlet connection size | 1-1/2 inch | 1/2 inch | 1 inch | 1-1/4 inch |
| inlet connection type | NPT female threaded | NPT female threaded | NPT female threaded | NPT female threaded |
| operation | electric (24V DC) | electric (220V AC) | electric (220V AC) | electric (24V DC) |
| stem seals | NBR | NBR | NBR | NBR |
| seat | PTFE | PTFE | PTFE | PTFE |
