1/2" 3-Way Threaded Stainless Steel Ball Valve
Estimated price:
$
6.16
(Final price may vary and will be confirmed via quote.)
| Material | stainless steel |
| inlet connection size | 1/2 inch |
| inlet connection type | threaded |
| operation | manual (handwheel) |
The 3-way T-port ball valve is designed to control the direction of flow for water, air, and oil. It has 1/2" threaded end connections. The valve has a stainless steel body, ball, bonnet, and stem, along with an SS201 handwheel. The seals are made of PTFE. The valve is manually operated.
Ships worldwide (International shipping fees apply)
Estimated delivery in 3–10 days
In stock
Customizable
Description

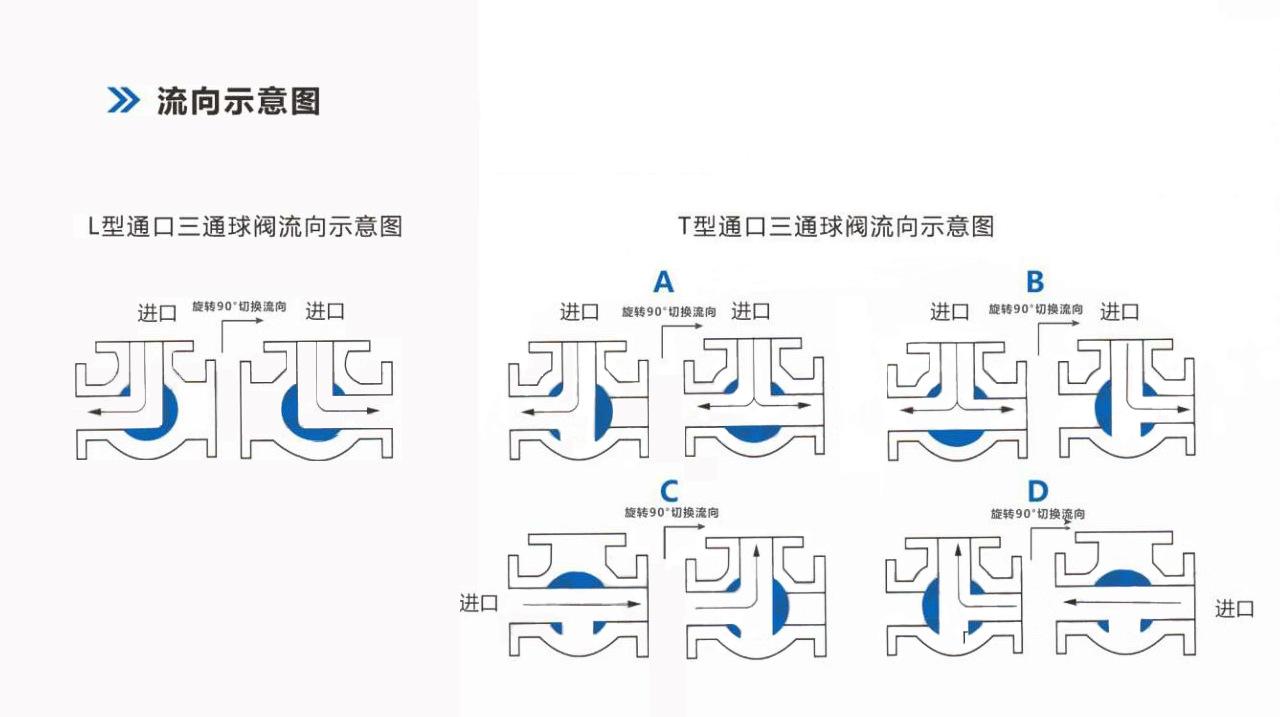

- The 3-way ball valve with T-port design can be used as either a diverter valve or a mixing valve. When using as a diverter valve, flow from one inlet is diverted to either one of the remaining outlets. When using as a mixing valve, there are two separate inlet ports and one common outlet port.
- The valve body is made of stainless steel, offering greater corrosion resistance compared to traditional brass or copper valves.

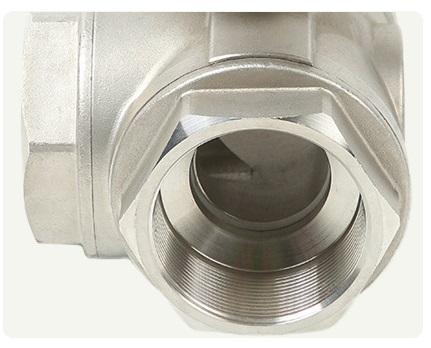

- The valve has 1/2" threaded connections on both the inlet and outlet. The threaded design offers easy installation, cost-effectiveness, and reliable sealing.
- the valve can be manually operated with the handwheel. By rotating it 90 degrees, the valve will switch position of the bore and the direction of the flow.
- The PTFE stem seals offer enhanced corrosion resistance and a long service life.
- The PTFE ball seat offers excellent sealing performance, even at low torque levels.
- The valve features a rising stem, making it easy to identify the valve's open or closed status.
- The valve has a threaded bonnet.
- The temperature range is from -29°C to 180°C.
- The ball valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.

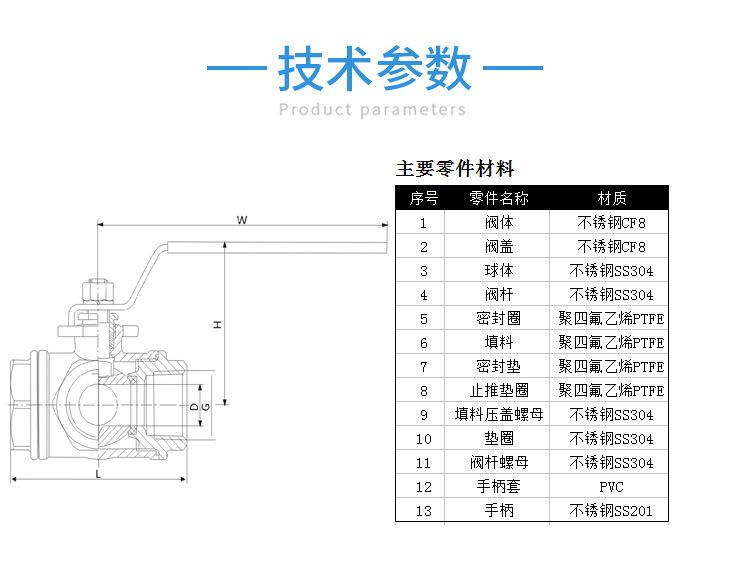

Specifications
| Product Name | 1/2" 3-way threaded stainless steel ball valve |
|---|---|
| valve type | ball valve |
| Material | stainless steel |
| port | 3-way |
| port type | T-port |
| inlet connection size | 1/2 inch |
| inlet connection type | threaded |
| outlet connection size | 1/2 inch |
| outlet connection type | threaded |
| operation | manual (handwheel) |
| stem seals | PTFE |
| seat | PTFE seated |
| stem | rising |
| bonnet | threaded bonnet |
| best suited media | water, air, oil |
| temperature range | -29°C to 180°C |
| Item Type | 3-way ball valve |
| Application | for pool |
| maximum pressure | 232 psi |
| Reference | S-857502945623 |
| Brand | Hykins |
Video
Compare with similar items
|
This item: 1/2" 3-way threaded stainless steel ball valve
|
2-1/2" threaded stainless steel 3-way ball valve
|
1-1/2" 3-way manual stainless steel ball valve
|
2" threaded stainless steel 3-way ball valve
|
|
| Customer Ratings | 3.6 (73) | 4.5 (6) | 3.9 (18) | 4.3 (41) |
| Price | $6.16 | $78.35 | $29.05 | $38.33 |
| valve type | ball valve | ball valve | ball valve | ball valve |
| port | 3-way | 3-way | 3-way | 3-way |
| port type | T-port | T-port | L-port | T-port |
| Material | stainless steel | stainless steel | stainless steel | stainless steel |
| inlet connection size | 1/2 inch | 2-1/2 inch | 1-1/2 inch | 2 inch |
| inlet connection type | threaded | threaded | threaded | threaded |
| operation | manual (handwheel) | manual (handwheel) | manual (handwheel) | manual (handwheel) |
| stem seals | PTFE | PTFE | PTFE | PTFE |
| seat | PTFE seated | PTFE seated | soft seated (PTFE) | PTFE seated |
