3" Ductile Iron Lug Butterfly Valve
$
18.12
| Material | ductile iron |
| inlet connection size | 3 inch |
| inlet connection type | lug type |
| operation | manual (lever handle) |

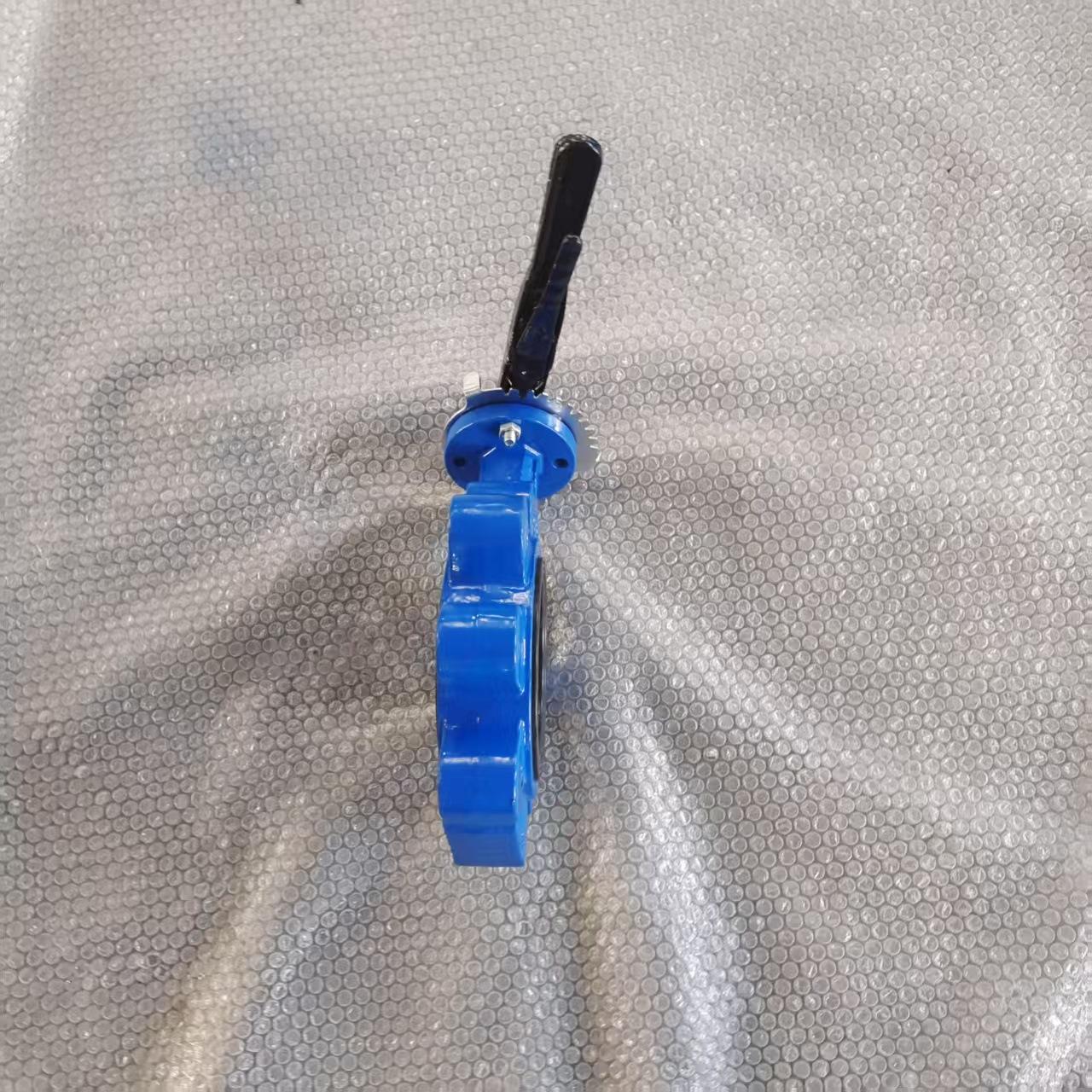

The 3" lug butterfly valve is designed for on/off flow control of water, air, and oil. It has a lug-style body with threaded lugs, allowing it to be installed between two flanges in a pipeline using bolts. The valve has an epoxy-coated ductile iron body, with 316 stainless steel disc and 420 stainless steel stem. The seals are made of rubber. The valve is manually operated with a quarter-turn lever handle.
Ships worldwide (International shipping fees apply)
Estimated delivery in 5–20 days
In stock
Note: This price applies to in-stock items available in limited quantities, typically offered as samples. For customized products or bulk orders, please request a quote via the shopping cart page or contact us by email.
Description
- The butterfly valve is used for on/off control or modulating the flow of water, air, and oil.
- The 3" lug butterfly valve is designed to be mounted between two ANSI-standard pipe flanges and is suitable for end-of-line use.
- The valve body is made of ductile iron, with epoxy coating for enhanced corrosion resistance and extended service life.
- The butterfly valve features a concentric design, in which the turning axis and axial alignment of the disc are both centered with the valve body, making it compact and cost-effective.
- The valve can be manually operated with a lever handle, allowing simple and quick quarter-turn operation to open or close the valve.
- The rubber stem seals offer low-friction sealing that ensures smooth stem rotation or movement while maintaining a tight seal.
- The rubber seat ensures tight sealing, corrosion resistance, and durability.
- The 316 stainless steel disc offers excellent corrosion resistance, durability, and strength.
- The maximum operating pressure is 232 psi (equivalent to PN16).
- The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.
Specifications
| Product Name | 3" ductile iron lug butterfly valve |
|---|---|
| valve type | butterfly valve |
| Material | ductile iron |
| port | 2-way |
| inlet connection size | 3 inch |
| inlet connection type | lug type |
| outlet connection size | 3 inch |
| outlet connection type | lug type |
| operation | manual (lever handle) |
| stem seals | rubber |
| seat | rubber |
| disc material | 316 stainless steel |
| stem material | 420 stainless steel |
| valve design | concentric |
| maximum pressure | 232 psi (PN16) |
| best suited media | water, air, oil |
| Item Type | lug butterfly valve |
| Features | ductile iron body with epoxy coating |
| Brand Name | Hykins Basics |
