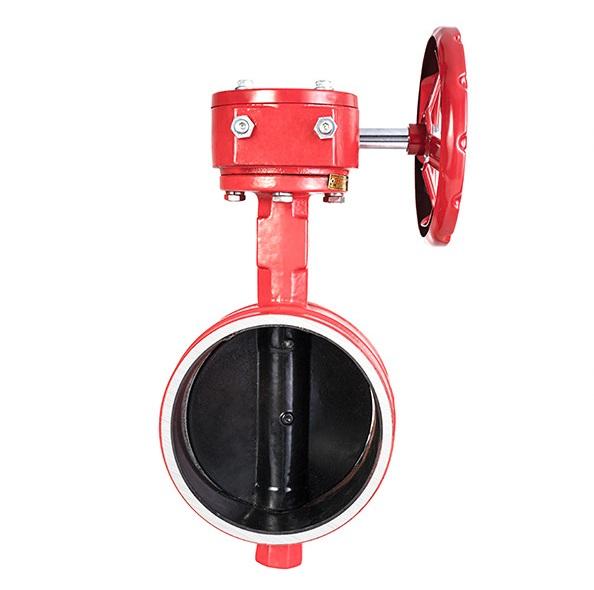

2" Ductile Iron Gear Operated Grooved Butterfly Valve
Estimated price:
$
35.38
(Final price may vary and will be confirmed via quote.)
| Material | ductile iron |
| inlet connection size | 2 inch |
| inlet connection type | grooved type |
| operation | gear operated |
The 2" grooved butterfly valve is designed for on/off flow control of water, air, and oil. It can be installed between two grooved-end pipes using standard grooved couplings. The valve body is made of ductile iron, with epoxy coating for enhanced corrosion resistance and extended service life. The valve can be worm gear operated, utilizing a worm gear mechanism with a quarter-turn handwheel to open or close the valve, allowing for precise adjustment of its position.
Ships worldwide (International shipping fees apply)
Estimated delivery in 5–10 days
In stock
Customizable
Description
- The 2" grooved butterfly valve is used for on/off control of the flow of water, air, and oil.
- The 2" grooved butterfly valve is designed with grooved ends that allow for quick and easy installation between two grooved-end pipes using grooved couplings. This connection method makes installation faster and easier compared to flanged or welded joints, while still providing a secure, leak-resistant seal.
- The valve body is made of ductile iron, with epoxy coating for enhanced corrosion resistance and extended service life. It features a 316 stainless steel disc and a 420 stainless steel stem.

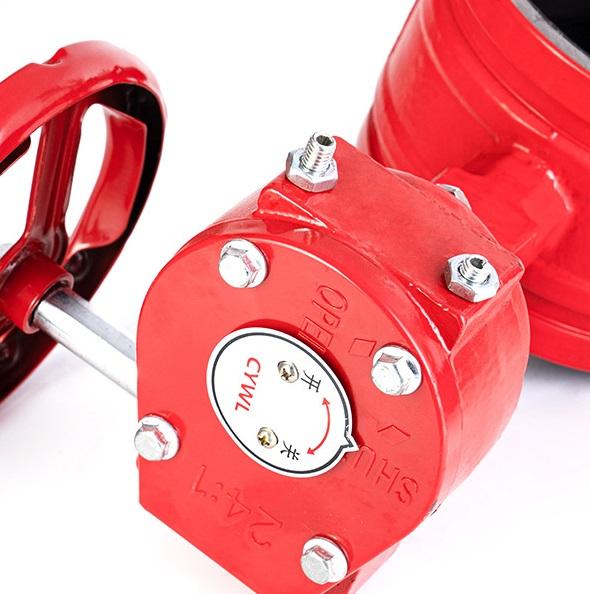

- The valve can be worm gear operated, utilizing a worm gear mechanism with a quarter-turn handwheel to open or close the valve, allowing for precise adjustment of its position.
- The EPDM stem seals offer excellent resistance to water, steam, and mild chemicals, ensuring reliable sealing performance across a wide temperature range.
- The EPDM seat provides a tight shutoff and ensures sealing between the disc and the valve body.
- The butterfly valve features a concentric design, in which the turning axis and axial alignment of the disc are both centered with the valve body, making it compact and cost-effective.
- The valve is rated ANSI Class 150, with a maximum working pressure of approximately 285 psi (at 100°F).
- The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.
Specifications
| Product Name | 2" ductile iron gear operated grooved butterfly valve |
|---|---|
| valve type | butterfly valve |
| Material | ductile iron |
| port | 2-way |
| inlet connection size | 2 inch |
| inlet connection type | grooved type |
| outlet connection size | 2 inch |
| outlet connection type | grooved type |
| operation | gear operated |
| stem seals | EPDM |
| seat | EPDM |
| disc material | 316 stainless steel |
| stem material | 420 stainless steel |
| valve design | concentric |
| pressure rating | ANSI Class 150 (285 psi @ 100°F) |
| best suited media | water, air, oil |
| Item Type | grooved butterfly valve |
| Features | ductile iron body with epoxy coating |
| Reference | S-916130341867 |
| Brand | Hykins |
