2-1/2" Ductile Iron Gear Operated Grooved Butterfly Valve

Description

The 2-1/2" grooved butterfly valve is used for on/off control of the flow of water, air, and oil.
The 2-1/2" grooved butterfly valve is designed with grooved ends that allow for quick and easy installation between two grooved-end pipes using grooved couplings. This connection method makes installation faster and easier than traditional connection methods, while still providing a secure, leak-resistant seal.

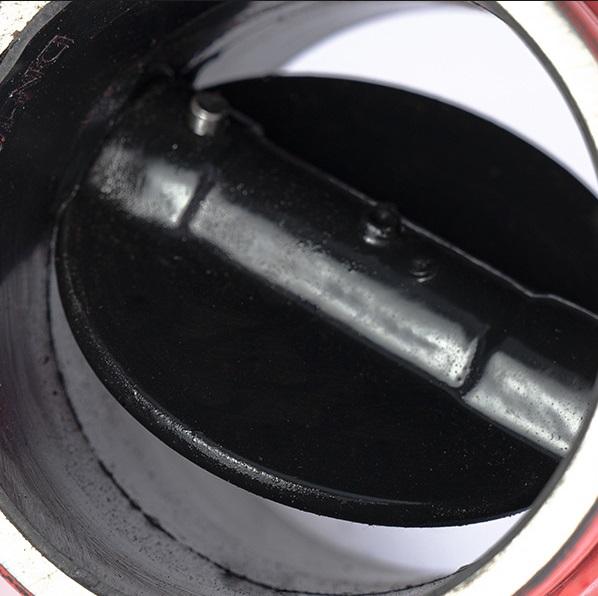

The valve body is made of ductile iron, with epoxy coating for enhanced corrosion resistance and extended service life. It features a 316 stainless steel disc and a 420 stainless steel stem.

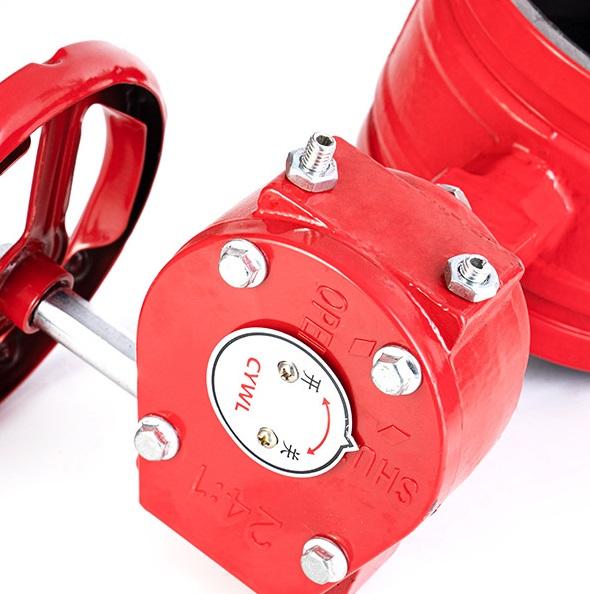

The valve can be worm gear operated, utilizing a worm gear mechanism with a quarter-turn handwheel to open or close the valve, allowing for precise adjustment of its position.
The EPDM stem seals offer excellent resistance to water, steam, and mild chemicals, ensuring reliable sealing performance across a wide temperature range.
The EPDM seat provides a tight shutoff and ensures sealing between the disc and the valve body.
The butterfly valve features a concentric design, in which the turning axis and axial alignment of the disc are both centered with the valve body, making it compact and cost-effective.
The valve is rated ANSI Class 150, with a maximum working pressure of approximately 285 psi (at 100°F).
The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.

Product Name	2-1/2" ductile iron gear operated grooved butterfly valve
valve type	butterfly valve
Material	ductile iron
port	2-way
inlet connection size	2-1/2 inch
inlet connection type	grooved type
outlet connection size	2-1/2 inch
outlet connection type	grooved type
operation	gear operated
stem seals	EPDM
seat	EPDM
disc material	316 stainless steel
stem material	420 stainless steel
valve design	concentric
pressure rating	ANSI Class 150 (285 psi @ 100°F)
best suited media	water, air, oil
Item Type	grooved butterfly valve
Features	ductile iron body with epoxy coating
Reference	S-916130341867
Brand	Hykins

	This item: 2-1/2" ductile iron gear operated grooved butterfly valve	2" ductile iron gear operated grooved butterfly valve	6" ductile iron worm gear operated grooved butterfly valve	5" worm gear operated ductile iron grooved butterfly valve

Customer Ratings	3.5 (25)	3.5 (71)	4.0 (5)	4.6 (96)
Price	$38.48	$35.38	$70.54	$67.16
valve type	butterfly valve	butterfly valve	butterfly valve	butterfly valve
port	2-way	2-way	2-way	2-way
port type	—	—	—	—
Material	ductile iron	ductile iron	ductile iron	ductile iron
inlet connection size	2-1/2 inch	2 inch	6 inch	5 inch
inlet connection type	grooved type	grooved type	grooved type	grooved type
operation	gear operated	gear operated	worm gear operated	worm gear operated
stem seals	EPDM	EPDM	NBR	NBR
seat	EPDM	EPDM	NBR	NBR
