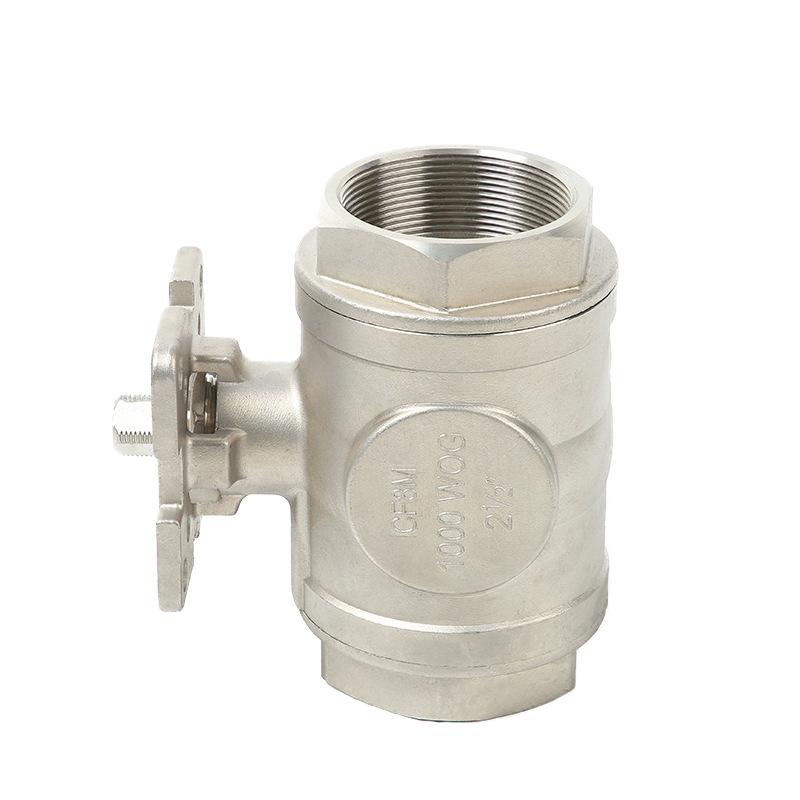

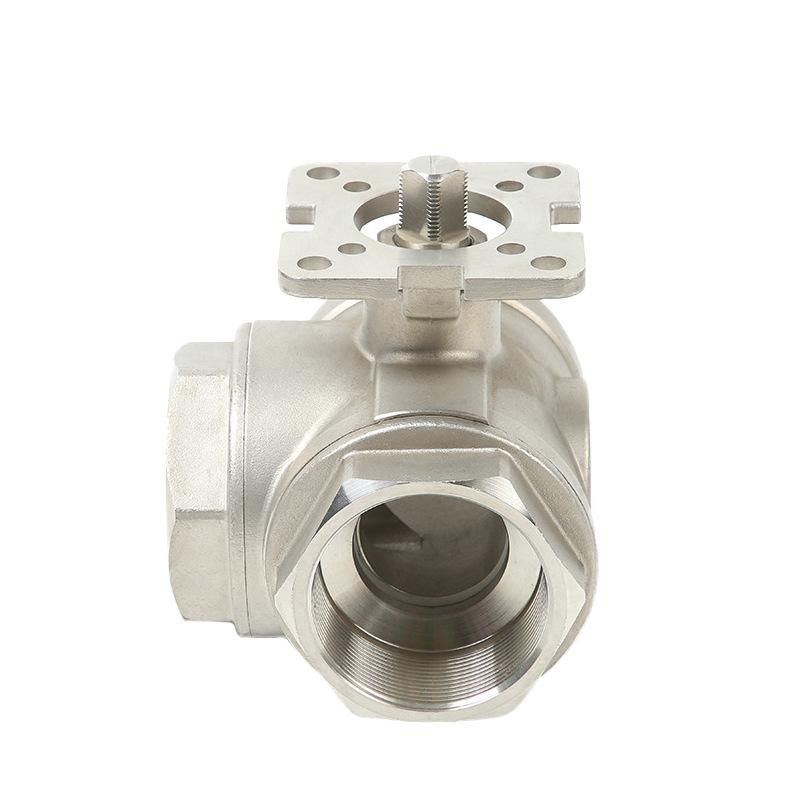

2-1/2" threaded stainless steel 3-way ball valve
$
78.35
In stock
| Material | stainless steel |
| inlet connection size | 2-1/2 inch |
| inlet connection type | threaded |
| operation | manual (handwheel) |
The 3-way T-port ball valve is designed to control the direction of flow for water, air, and oil. It has 2-1/2" threaded end connections. The valve has a stainless steel body, ball, bonnet, and stem, along with an SS201 handwheel. The seals are made of PTFE. The valve is manually operated.
Description
- The 3-way ball valve with T-port design can be used as either a diverter valve or a mixing valve. When using as a diverter valve, flow from one inlet is diverted to either one of the remaining outlets. When using as a mixing valve, there are two separate inlet ports and one common outlet port.
- The valve body is made of stainless steel, offering greater corrosion resistance compared to traditional brass or copper valves.
- The valve has 2-1/2" threaded connections on both the inlet and outlet. The threaded design offers easy installation, cost-effectiveness, and reliable sealing.
- the valve can be manually operated with the handwheel. By rotating it 90 degrees, the valve will switch position of the bore and the direction of the flow.
- The PTFE stem seals offer enhanced corrosion resistance and a long service life.
- The PTFE ball seat offers excellent sealing performance, even at low torque levels.
- The valve features a non-rising stem for limited-space operation.
- The valve has a bolted bonnet.
- The temperature range is from -29°C to 180°C.
- The ball valve is designed for use with water, air, oil, gas, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.
Specifications
| Product Name | 2-1/2" threaded stainless steel 3-way ball valve |
|---|---|
| valve type | ball valve |
| Material | stainless steel |
| port | 3-way |
| port type | T-port |
| inlet connection size | 2-1/2 inch |
| inlet connection type | threaded |
| outlet connection size | 2-1/2 inch |
| outlet connection type | threaded |
| operation | manual (handwheel) |
| stem seals | PTFE |
| seat | PTFE seated |
| stem | non-rising |
| bonnet | bolted bonnet |
| best suited media | water, air, oil |
| temperature range | -29°C to 180°C |
| Item Type | stainless steel ball valve |
| maximum pressure | 232 psi (PN16) |
| Brand Name | Hykins Basics |
Video
Compare with similar items
|
This item: 2-1/2" threaded stainless steel 3-way ball valve
|
2" threaded stainless steel 3-way ball valve
|
1/2" 3-way threaded stainless steel ball valve
|
1-1/2" 3-way manual stainless steel ball valve
|
|
| Customer Ratings | 4.5 (6) | 4.3 (41) | 3.6 (73) | 3.9 (18) |
| Price | $78.35 | $38.33 | $6.16 | $29.05 |
| valve type | ball valve | ball valve | ball valve | ball valve |
| port | 3-way | 3-way | 3-way | 3-way |
| port type | T-port | T-port | T-port | L-port |
| Material | stainless steel | stainless steel | stainless steel | stainless steel |
| inlet connection size | 2-1/2 inch | 2 inch | 1/2 inch | 1-1/2 inch |
| inlet connection type | threaded | threaded | threaded | threaded |
| operation | manual (handwheel) | manual (handwheel) | manual (handwheel) | manual (handwheel) |
| stem seals | PTFE | PTFE | PTFE | PTFE |
| seat | PTFE seated | PTFE seated | PTFE seated | soft seated (PTFE) |
