2-1/2" Pneumatic Wafer Butterfly Valve
$
36.78
| Material | ductile iron |
| inlet connection size | 2-1/2 inch |
| inlet connection type | wafer type |
| operation | pneumatic |

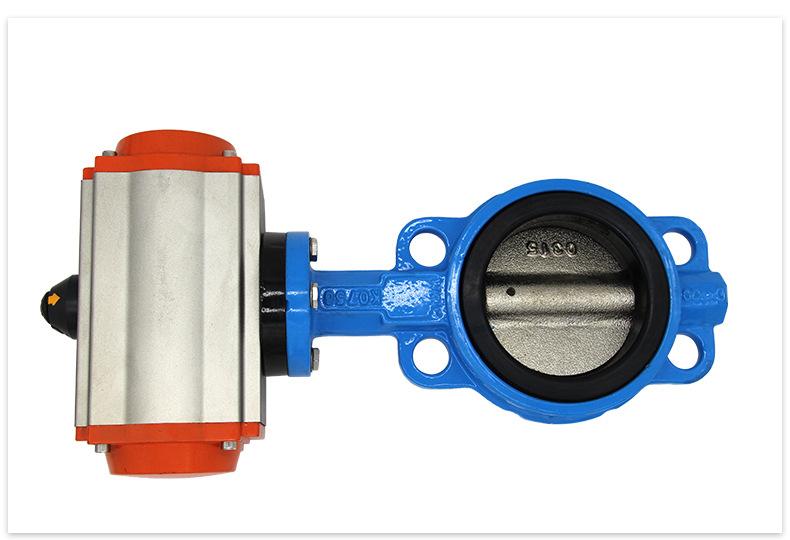

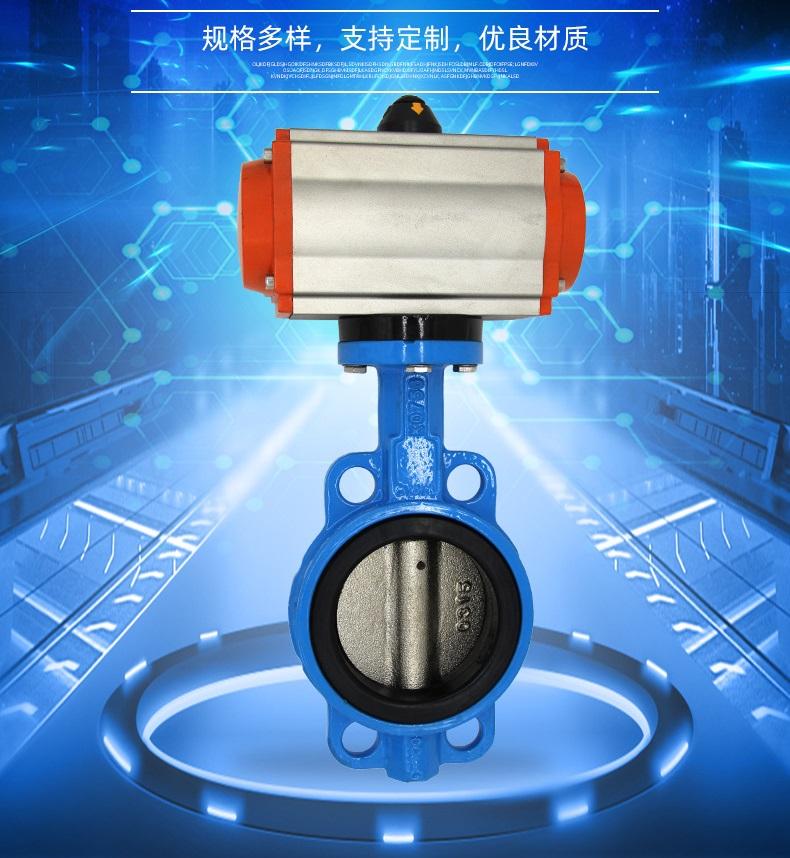

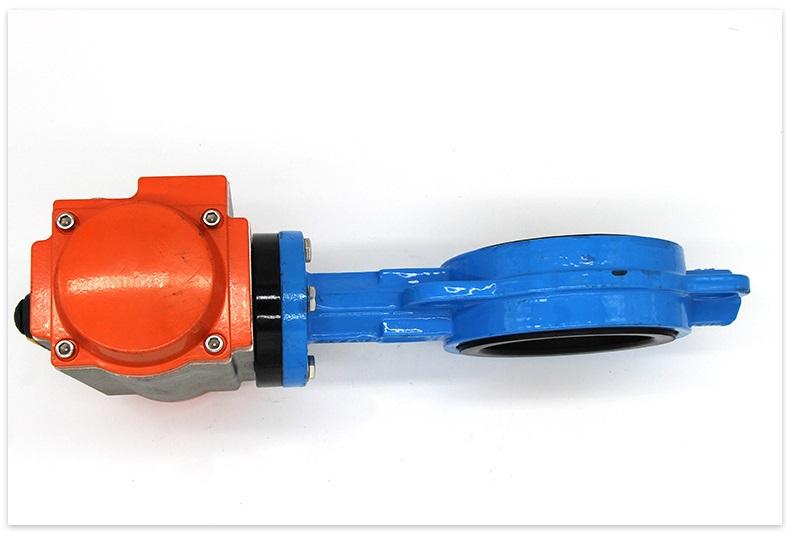

The 2-1/2" wafer butterfly valve is designed for on/off flow control of water, air, and oil. It has a wafer-style body, allowing it to fit between two flanges in a pipeline. The valve has an epoxy-coated ductile iron body, with 316 stainless steel disc and 420 stainless steel stem. The seals are made of rubber. The valve is operated by a double-acting, quarter-turn pneumatic actuator.
Ships worldwide (International shipping fees apply)
Estimated delivery in 5–20 days
In stock
Note: This price applies to in-stock items available in limited quantities, typically offered as samples. For customized products or bulk orders, please request a quote via the shopping cart page or contact us by email.
Description
- The butterfly valve is used for on/off control or modulating the flow of water, air, and oil.
- The 2-1/2" wafer butterfly valve is specifically designed to be mounted between two pipe flanges with ANSI standards.
- The valve body is made of ductile iron, with epoxy coating for enhanced corrosion resistance and extended service life.
- The butterfly valve features a concentric design, in which the turning axis and axial alignment of the disc are both centered with the valve body, making it compact and cost-effective.
- The valve is operated by a double acting pneumatic actuator that uses compressed air to open and close the valve with a quarter-turn motion, ensuring fast and reliable operation.
- The rubber stem seals offer low-friction sealing that ensures smooth stem rotation or movement while maintaining a tight seal.
- The rubber seat ensures tight sealing, corrosion resistance, and durability.
- The 316 stainless steel disc offers excellent corrosion resistance, durability, and strength.
- The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.
Specifications
| Product Name | 2-1/2" pneumatic wafer butterfly valve |
|---|---|
| valve type | butterfly valve |
| Material | ductile iron |
| port | 2-way |
| inlet connection size | 2-1/2 inch |
| inlet connection type | wafer type |
| outlet connection size | 2-1/2 inch |
| outlet connection type | wafer type |
| operation | pneumatic |
| stem seals | rubber |
| seat | rubber |
| disc material | 316 stainless steel |
| stem material | 420 stainless steel |
| valve design | concentric |
| maximum pressure | 145 psi (PN10) |
| best suited media | water, air, oil |
| Item Type | wafer butterfly valve |
| Features | ductile iron body with epoxy coating |
| Brand Name | Hykins Basics |
Video
Compare with similar items
|
This item: 2-1/2" pneumatic wafer butterfly valve
|
2-1/2" cast steel pneumatic wafer butterfly valve
|
2" ductile iron pneumatic wafer butterfly valve
|
2" cast steel pneumatic wafer butterfly valve
|
|
| Customer Ratings | 4.2 (55) | 4.2 (75) | 4.1 (98) | 3.7 (89) |
| Price | $36.78 | $36.78 | $31.75 | $31.75 |
| valve type | butterfly valve | butterfly valve | butterfly valve | butterfly valve |
| port | 2-way | 2-way | 2-way | 2-way |
| port type | — | — | — | — |
| Material | ductile iron | cast steel | ductile iron | cast steel |
| inlet connection size | 2-1/2 inch | 2-1/2 inch | 2 inch | 2 inch |
| inlet connection type | wafer type | wafer type | wafer type | wafer type |
| operation | pneumatic | pneumatic | pneumatic | pneumatic |
| stem seals | rubber | graphite | rubber | graphite |
| seat | rubber | metal seated (duplex 2507) | rubber | metal seated (duplex 2507) |
