18" Ductile Iron Flanged Butterfly Valve
Estimated price:
$
704.86
(Final price may vary and will be confirmed via quote.)
| Material | ductile iron |
| inlet connection size | 18 inch |
| inlet connection type | flanged |
| operation | worm gear operated |
The 18" butterfly valve is designed for on/off flow control of water, air, and oil. It has flanges on both sides of its body, allowing it to be bolted directly to pipe flanges. The valve has an epoxy-coated ductile iron body, with 316 stainless steel disc and 420 stainless steel stem. The seals are made of NBR. The valve is worm gear operated with a quarter-turn handwheel.
Ships worldwide (International shipping fees apply)
Estimated delivery in 3–10 days
In stock
Customizable
Description
- The butterfly valve is used for on/off control or modulating the flow of water, air, and oil.

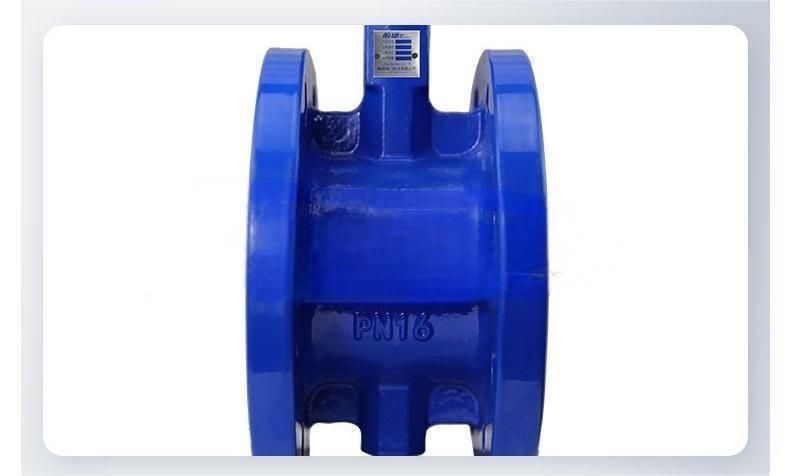

- The 18" flanged butterfly valve has flanges on both sides of its body, allowing it to be bolted directly to pipe flanges, which provides a more secure installation and more reliable sealing performance.
- The valve body is made of ductile iron, with epoxy coating for enhanced corrosion resistance and extended service life.
- The valve can be worm gear operated, utilizing a worm gear mechanism with a quarter-turn handwheel to open or close the valve, allowing for precise adjustment of its position.
- The NBR stem seals provide reliable sealing performance and resistance to oils, water, and hydraulic fluids.
- The NBR seat offers a tight seal and good wear resistance.
- The 316 stainless steel disc offers excellent corrosion resistance, durability, and strength.
- The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.
Specifications
| Product Name | 18" ductile iron worm gear operated flanged butterfly valve |
|---|---|
| valve type | butterfly valve |
| Material | ductile iron |
| port | 2-way |
| inlet connection size | 18 inch |
| inlet connection type | flanged |
| outlet connection size | 18 inch |
| outlet connection type | flanged |
| operation | worm gear operated |
| stem seals | NBR |
| seat | NBR |
| disc material | 316 stainless steel |
| stem material | 420 stainless steel |
| best suited media | water, air, oil |
| Item Type | flanged butterfly valve |
| Features | ductile iron body with epoxy coating |
| valve design | concentric |
| maximum pressure | 232 psi |
| Reference | S-560731791392 |
| Brand | Hykins |
Video
Compare with similar items
|
This item: 18" ductile iron worm gear operated flanged butterfly valve
|
5" worm gear operated ductile iron double flanged butterfly valve
|
24" worm gear operated ductile iron flanged butterfly valve
|
8" stainless steel worm gear operated flanged butterfly valve
|
|
| Customer Ratings | 3.5 (87) | 4.6 (19) | 4.1 (53) | 4.4 (30) |
| Price | $704.86 | $84.33 | $1335.78 | $162.48 |
| valve type | butterfly valve | butterfly valve | butterfly valve | butterfly valve |
| port | 2-way | 2-way | 2-way | 2-way |
| port type | — | — | — | — |
| Material | ductile iron | ductile iron | ductile iron | stainless steel |
| inlet connection size | 18 inch | 5 inch | 24 inch | 8 inch |
| inlet connection type | flanged | double flanged | flanged | flanged |
| operation | worm gear operated | worm gear operated | worm gear operated | worm gear operated |
| stem seals | NBR | NBR | EPDM | EPDM |
| seat | NBR | soft seated (NBR) | EPDM | EPDM |
