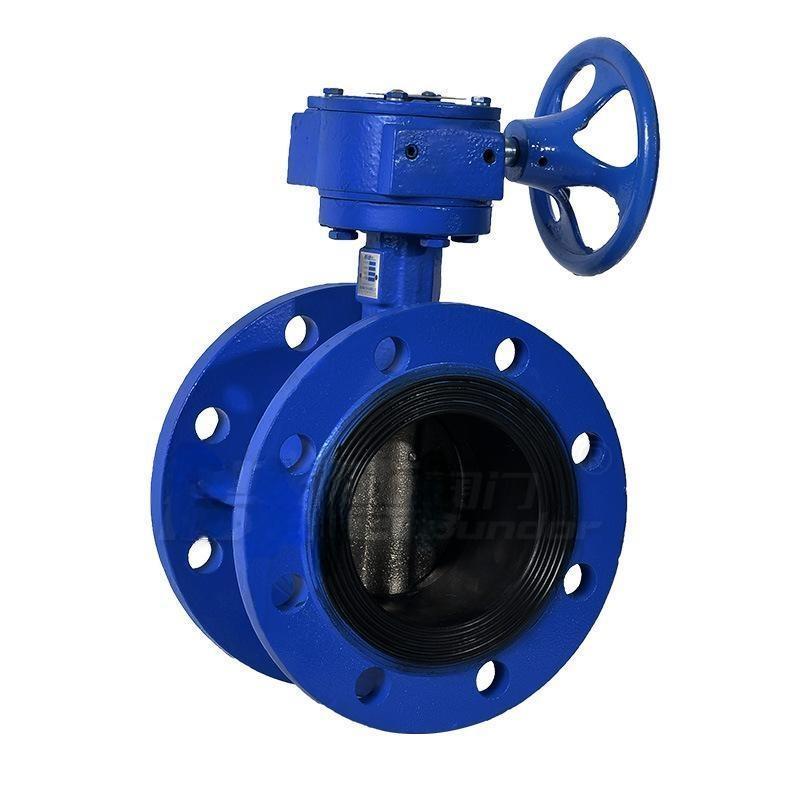

6" Worm Gear Operated Stainless Steel Butterfly Valve
Estimated price:
$
98.82
(Final price may vary and will be confirmed via quote.)
| Material | stainless steel |
| inlet connection size | 6 inch |
| inlet connection type | double flanged |
| operation | worm gear operated |
The 6" butterfly valve is designed for on/off flow control of water, air, and oil. It has flanges on both sides of its body, allowing it to be bolted directly to pipe flanges. The valve has a stainless steel body, with stainless steel disc and stem. The seals are made of NBR. The valve is worm gear operated with a quarter-turn handwheel.
Ships worldwide (International shipping fees apply)
Estimated delivery in 3–10 days
In stock
Customizable
Description
- The butterfly valve is used for on/off control or modulating the flow of water, air, and oil.
- The 6" flanged butterfly valve has flanges on both sides of its body, allowing it to be bolted directly to pipe flanges, which provides a more secure installation and more reliable sealing performance.
- The valve body is made of stainless steel, offering greater corrosion resistance compared to traditional brass or copper valves.
- The valve can be worm gear operated, utilizing a worm gear mechanism with a quarter-turn handwheel to open or close the valve, allowing for precise adjustment of its position.
- The NBR stem seals provide reliable sealing performance and resistance to oils, water, and hydraulic fluids.
- The NBR seat offers a tight seal and good wear resistance.
- The stainless steel disc offers excellent corrosion resistance, durability, and strength.
- The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.
Specifications
| Product Name | 6" worm gear operated stainless steel flanged butterfly valve |
|---|---|
| valve type | butterfly valve |
| Material | stainless steel |
| port | 2-way |
| inlet connection size | 6 inch |
| inlet connection type | double flanged |
| outlet connection size | 6 inch |
| outlet connection type | double flanged |
| operation | worm gear operated |
| stem seals | NBR |
| seat | NBR |
| disc material | stainless steel |
| stem material | stainless steel |
| best suited media | water, air, oil |
| Item Type | flanged butterfly valve |
| valve design | concentric |
| maximum pressure | 232 psi |
| Application | irrigation |
| Reference | S-560731791392 |
| Brand | Hykins |
Video
Compare with similar items
|
This item: 6" worm gear operated stainless steel flanged butterfly valve
|
8" stainless steel worm gear operated flanged butterfly valve
|
10" worm gear operated stainless steel flanged butterfly valve
|
4" cast steel worm gear operated flanged butterfly valve
|
|
| Customer Ratings | 4.2 (69) | 4.4 (30) | 4.9 (81) | 4.1 (96) |
| Price | $98.82 | $162.48 | $207.52 | $66.68 |
| valve type | butterfly valve | butterfly valve | butterfly valve | butterfly valve |
| Material | stainless steel | stainless steel | stainless steel | cast steel |
| inlet connection size | 6 inch | 8 inch | 10 inch | 4 inch |
| inlet connection type | double flanged | flanged | flanged | flanged |
| operation | worm gear operated | worm gear operated | worm gear operated | worm gear operated |
| stem seals | NBR | EPDM | EPDM | PTFE |
| seat | NBR | EPDM | EPDM | PTFE |
