12" Cast Steel Flanged Butterfly Valve
Estimated price:
$
277.87
(Final price may vary and will be confirmed via quote.)
| Material | cast steel |
| inlet connection size | 12 inch |
| inlet connection type | flanged |
| operation | worm gear operated |
The 12" butterfly valve is designed for on/off flow control of water, air, and oil. It has flanges on both sides of its body, allowing it to be bolted directly to pipe flanges. The valve has a cast steel body, with 316 stainless steel disc and 420 stainless steel stem. The seals are made of PTFE. The valve is worm gear operated with a quarter-turn handwheel.
Ships worldwide (International shipping fees apply)
Estimated delivery in 3–10 days
In stock
Customizable
Description
- The butterfly valve is used for on/off control or modulating the flow of water, air, and oil.
- The 12" flanged butterfly valve has flanges on both sides of its body, allowing it to be bolted directly to pipe flanges, which provides a more secure installation and more reliable sealing performance.
- The valve body is made of cast steel, offering excellent mechanical strength and impact resistance.

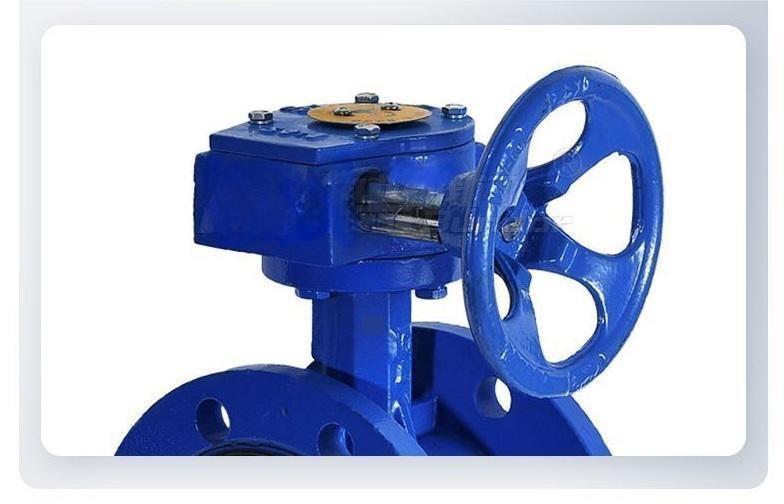

- The valve can be worm gear operated, utilizing a worm gear mechanism with a quarter-turn handwheel to open or close the valve, allowing for precise adjustment of its position.
- The PTFE stem seals offer enhanced corrosion resistance and a long service life.
- The PTFE seat offers excellent sealing performance, even at low torque levels.
- The 316 stainless steel disc offers excellent corrosion resistance, durability, and strength.
- The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.
Specifications
| Product Name | 12" cast steel flanged butterfly valve |
|---|---|
| valve type | butterfly valve |
| Material | cast steel |
| port | 2-way |
| inlet connection size | 12 inch |
| inlet connection type | flanged |
| outlet connection size | 12 inch |
| outlet connection type | flanged |
| operation | worm gear operated |
| stem seals | PTFE |
| seat | PTFE |
| disc material | 316 stainless steel |
| stem material | 420 stainless steel |
| best suited media | water, air, oil |
| Item Type | flanged butterfly valve |
| valve design | concentric |
| maximum pressure | 232 psi (PN16) |
| Reference | S-560731791392 |
| Brand | Hykins |
