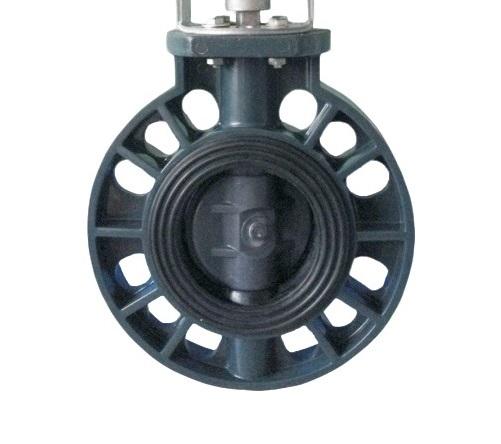

3" PVC Electric Wafer Butterfly Valve

Description

The 3" wafer butterfly valve is used for on/off control and modulating control of the flow of water, air, and oil.
The 3" wafer butterfly valve is specifically designed to be mounted between two pipe flanges with ANSI standards.
The valve body is made of PVC, providing outstanding corrosion resistance and lightweight durability. It features a PVC disc and a 316 stainless steel stem.

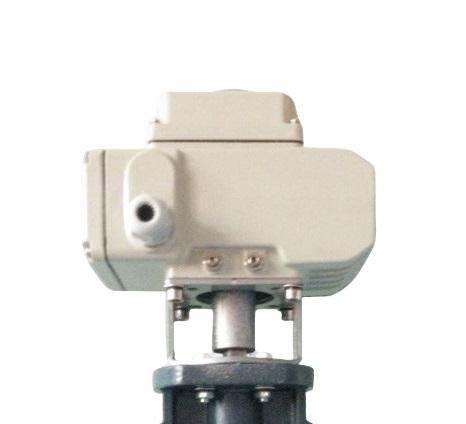

The valve is operated by an electric actuator powered by 24V DC, which opens and closes the valve with a quarter-turn motion, ensuring fast and reliable operation. It supports both on/off control and modulating control.
The Viton stem seals offer reliable, long-lasting sealing performance.
The Viton seat ensures a durable and dependable seal, and enhances chemical and temperature resistance.
The butterfly valve features a concentric design, in which the turning axis and axial alignment of the disc are both centered with the valve body, making it compact and cost-effective.
The valve is rated ANSI Class 125, with a maximum working pressure of approximately 200 psi (at 100°F).
The temperature range is from -25°C to 70°C.
The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.

Product Name	3" PVC electric wafer butterfly valve
valve type	butterfly valve
Material	PVC
port	2-way
inlet connection size	3 inch
inlet connection type	wafer type
outlet connection size	3 inch
outlet connection type	wafer type
operation	electric (24V DC)
stem seals	FKM (Viton)
seat	FKM (Viton)
disc material	PVC
stem material	316 stainless steel
valve design	concentric
pressure rating	ANSI Class 125 (200 psi @ 100°F)
best suited media	water, air, oil
temperature range	-25°C to 70°C
Item Type	wafer butterfly valve
Reference	S-1251994565
Brand	Hykins

	This item: 3" PVC electric wafer butterfly valve	4" PVC electric wafer butterfly valve	6" PVC electric wafer butterfly valve	12" PVC electric wafer butterfly valve

Customer Ratings	3.9 (23)	3.8 (63)	3.6 (27)	4.3 (65)
Price	$73.33	$101.62	$141.33	$258.23
valve type	butterfly valve	butterfly valve	butterfly valve	butterfly valve
port	2-way	2-way	2-way	2-way
port type	—	—	—	—
Material	PVC	PVC	PVC	PVC
inlet connection size	3 inch	4 inch	6 inch	12 inch
inlet connection type	wafer type	wafer type	wafer type	wafer type
operation	electric (24V DC)	electric (24V DC)	electric (24V DC)	electric (24V DC)
stem seals	FKM (Viton)	EPDM	EPDM	NBR
seat	FKM (Viton)	EPDM	EPDM	NBR
