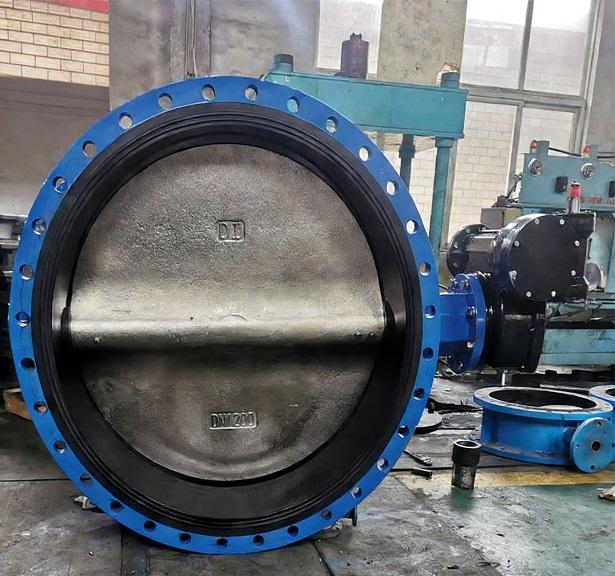

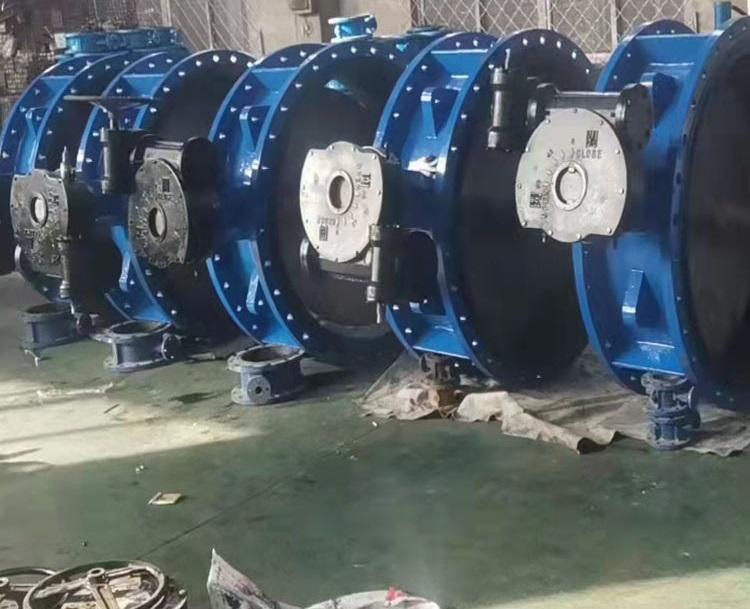

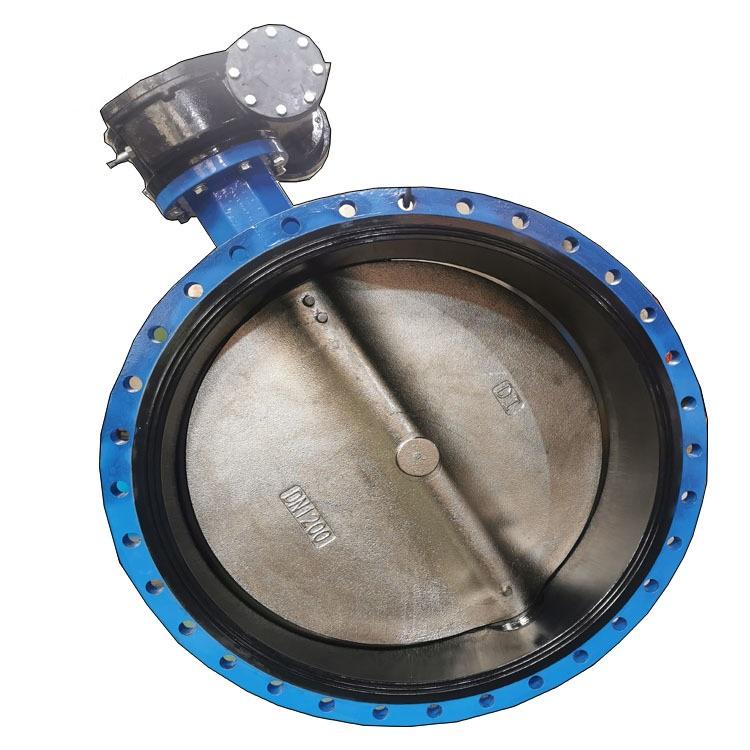

72" Ductile Iron Worm Gear Operated Flanged Butterfly Valve

Estimated price: $ 8703.22

(Final price may vary and will be confirmed via quote.)

4.0 out of 5, based on 8 reviews

Material	ductile iron
inlet connection size	72 inch
inlet connection type	flanged
operation	worm gear operated

View All Specifications

The 72" flanged butterfly valve is designed for on/off flow control of water, air, and oil. It has flanges on both sides of its body, allowing it to be bolted directly to pipe flanges. The valve body is made of ductile iron, with epoxy coating for enhanced corrosion resistance and extended service life. The valve can be worm gear operated, utilizing a worm gear mechanism with a quarter-turn handwheel to open or close the valve, allowing for precise adjustment of its position.

View Full Description Compare Products

Ships worldwide (International shipping fees apply)

Estimated delivery in 5–15 days

In stock

Quantity

Customizable

Note: The price shown on this page is an estimated price only. The final price may vary depending on your order quantity, customization requirements, and other factors. For an accurate quote, please click the Get a Quote button above, or contact us directly via email or WhatsApp.

Description

The 72" flanged butterfly valve is used for on/off control of the flow of water, air, and oil.
The 72" flanged butterfly valve has flanges on both sides of its body, allowing it to be bolted directly to pipe flanges, which provides a more secure installation and more reliable sealing performance.
The valve body is made of ductile iron, with epoxy coating for enhanced corrosion resistance and extended service life. It features a 316 stainless steel disc and a 316 stainless steel stem.
The valve can be worm gear operated, utilizing a worm gear mechanism with a quarter-turn handwheel to open or close the valve, allowing for precise adjustment of its position.
The EPDM stem seals offer excellent resistance to water, steam, and mild chemicals, ensuring reliable sealing performance across a wide temperature range.
The EPDM seat provides a tight shutoff and ensures sealing between the disc and the valve body.
The butterfly valve features a concentric design, in which the turning axis and axial alignment of the disc are both centered with the valve body, making it compact and cost-effective.
The valve is rated ANSI Class 150, with a maximum working pressure of approximately 285 psi (at 100°F).
This large diameter butterfly valve is widely used in water supply networks, wastewater treatment plants, power generation, and industrial process systems where dependable flow control is essential.

Specifications

Product Name	72" ductile iron worm gear operated flanged butterfly valve
valve type	butterfly valve
Material	ductile iron
inlet connection size	72 inch
inlet connection type	flanged
outlet connection size	72 inch
outlet connection type	flanged
operation	worm gear operated
stem seals	EPDM
seat	EPDM
disc material	316 stainless steel
stem material	316 stainless steel
valve design	concentric
pressure rating	ANSI Class 150 (285 psi @ 100°F)
best suited media	fresh water, sewage, seawater, gas
Item Type	flanged butterfly valve
Features	large diameter
Reference	S-610101585171
Brand	Hykins
