12" CF8M Stainless Steel Gear Operated Grooved Butterfly Valve

Description

The 12" grooved butterfly valve is used for on/off control of the flow of water, air, and oil.
The 12" grooved butterfly valve is designed with grooved ends that allow for quick and easy installation between two grooved-end pipes using grooved couplings. This connection method makes installation faster and easier than traditional connection methods, while still providing a secure, leak-resistant seal.
The valve body is made of CF8M stainless steel, offering greater corrosion resistance compared to traditional brass or copper valves. It features a CF8M stainless steel disc and a 316 stainless steel stem.

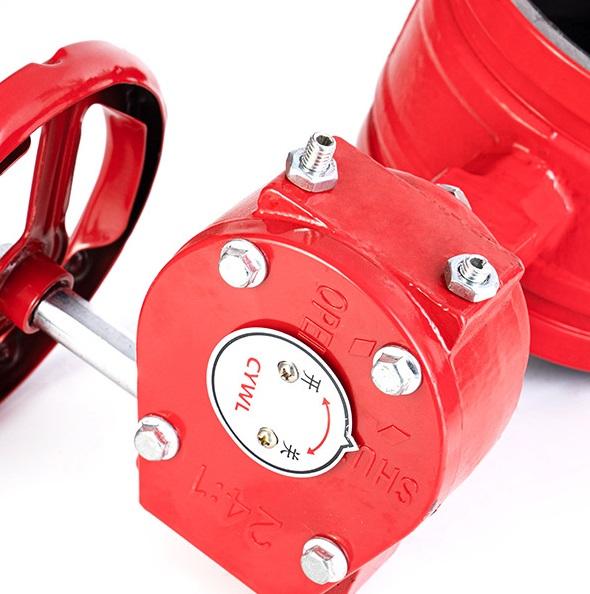

The valve can be worm gear operated, utilizing a worm gear mechanism with a quarter-turn handwheel to open or close the valve, allowing for precise adjustment of its position.
The PTFE stem seals offer enhanced corrosion resistance and a long service life.
The PTFE seat offers excellent sealing performance, even at low torque levels.
The butterfly valve features a concentric design, in which the turning axis and axial alignment of the disc are both centered with the valve body, making it compact and cost-effective.
The valve is rated ANSI Class 150, with a maximum working pressure of approximately 285 psi (at 100°F).
The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.

Product Name	12" CF8M stainless steel gear operated grooved butterfly valve
valve type	butterfly valve
Material	CF8M stainless steel
port	2-way
inlet connection size	12 inch
inlet connection type	grooved type
outlet connection size	12 inch
outlet connection type	grooved type
operation	gear operated
stem seals	PTFE
seat	PTFE
disc material	CF8M stainless steel
stem material	316 stainless steel
valve design	concentric
pressure rating	ANSI Class 150 (285 psi @ 100°F)
best suited media	water, air, oil
Item Type	grooved butterfly valve
Reference	S-916130341867
Brand	Hykins
