2" Manual Stainless Steel Flanged Butterfly Valve
Estimated price:
$
47.52
(Final price may vary and will be confirmed via quote.)
| Material | stainless steel |
| inlet connection size | 2 inch |
| inlet connection type | flanged |
| operation | manual (handwheel) |
The 2" butterfly valve is designed for on/off flow control of water, air, and oil. It has flanges on both sides of its body, allowing it to be bolted directly to pipe flanges. The valve has a stainless steel body, with a stainless steel disc and stem. The seals are made of EPDM. The valve is manually operated with a quarter-turn handwheel.
Ships worldwide (International shipping fees apply)
Estimated delivery in 3–10 days
In stock
Customizable
Description
- The butterfly valve is used for on/off control or modulating the flow of water, air, and oil.
- The 2" flanged butterfly valve has flanges on both sides of its body, allowing it to be bolted directly to pipe flanges, which provides a more secure installation and more reliable sealing performance.
- The valve body is made of stainless steel, offering greater corrosion resistance compared to traditional brass or copper valves.
- The valve can be manually operated with the handwheel. By rotating it 90 degrees, the valve will open or close.
- The EPDM stem seals offer excellent resistance to water, steam, and mild chemicals, ensuring reliable sealing performance across a wide temperature range.
- The EPDM seat provides a tight shutoff and ensures sealing between the disc and the valve body.
- The stainless steel disc offers excellent corrosion resistance, durability, and strength.
- The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.
Specifications
| Product Name | 2" manual stainless steel flanged butterfly valve |
|---|---|
| valve type | butterfly valve |
| Material | stainless steel |
| port | 2-way |
| inlet connection size | 2 inch |
| inlet connection type | flanged |
| outlet connection size | 2 inch |
| outlet connection type | flanged |
| operation | manual (handwheel) |
| stem seals | EPDM |
| seat | soft seated (EPDM) |
| disc material | stainless steel |
| stem material | stainless steel |
| best suited media | water, air, oil |
| Item Type | flanged butterfly valve |
| valve design | concentric |

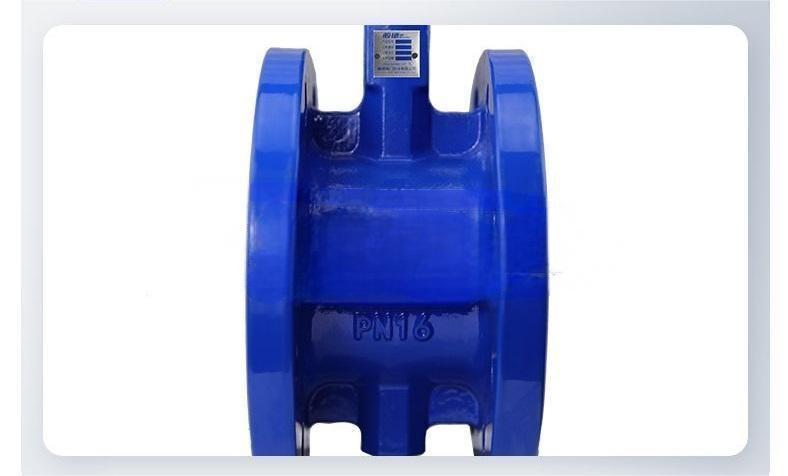

| maximum pressure | 232 psi (PN16) |
| Reference | S-560731791392 |
| Brand | Hykins |
