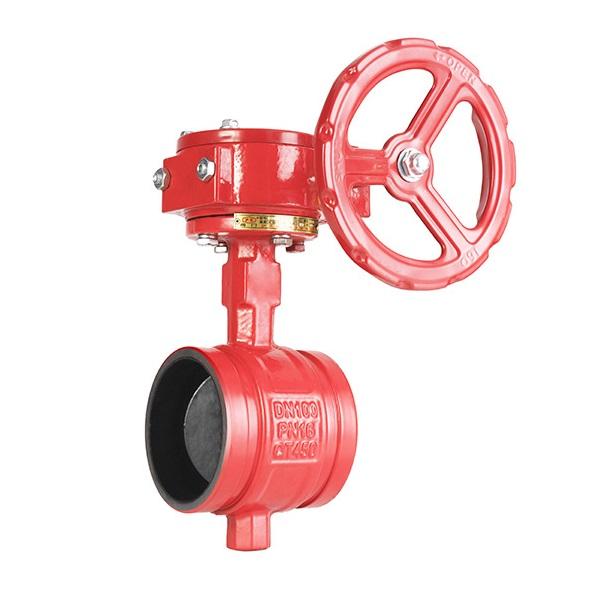

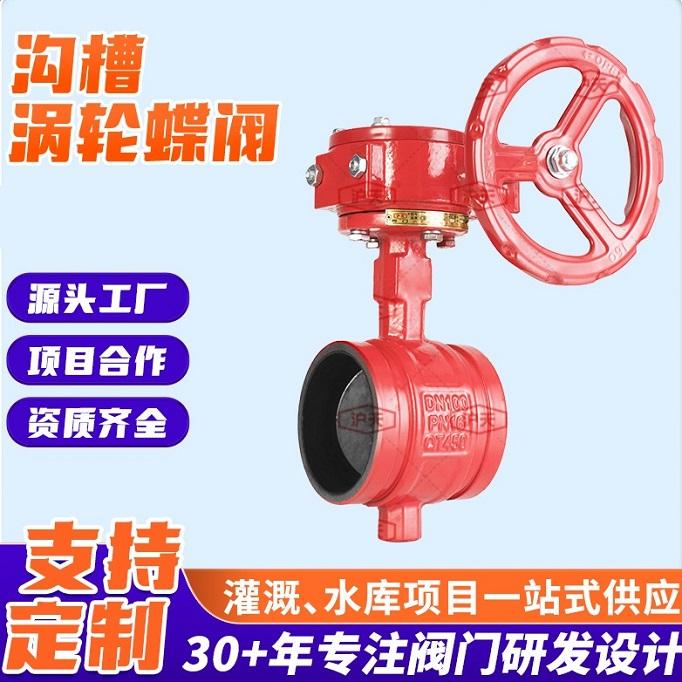

3" CF8M Stainless Steel Gear Operated Grooved Butterfly Valve

Description

The 3" grooved butterfly valve is used for on/off control of the flow of water, air, and oil.
The 3" grooved butterfly valve is designed with grooved ends that allow for quick and easy installation between two grooved-end pipes using grooved couplings. This connection method makes installation faster and easier than traditional connection methods, while still providing a secure, leak-resistant seal.

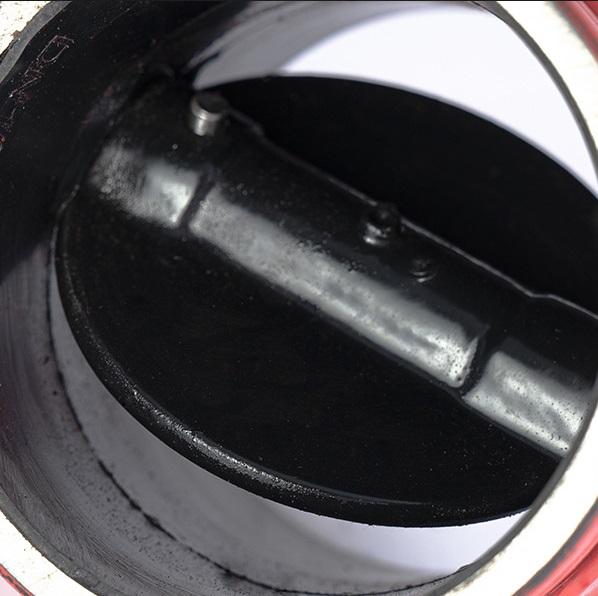

The valve body is made of CF8M stainless steel, offering greater corrosion resistance compared to traditional brass or copper valves. It features a CF8M stainless steel disc and a 316 stainless steel stem.
The valve can be worm gear operated, utilizing a worm gear mechanism with a quarter-turn handwheel to open or close the valve, allowing for precise adjustment of its position.
The EPDM stem seals offer excellent resistance to water, steam, and mild chemicals, ensuring reliable sealing performance across a wide temperature range.
The EPDM seat provides a tight shutoff and ensures sealing between the disc and the valve body.
The butterfly valve features a concentric design, in which the turning axis and axial alignment of the disc are both centered with the valve body, making it compact and cost-effective.
The valve is rated ANSI Class 150, with a maximum working pressure of approximately 285 psi (at 100°F).
The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.

Product Name	3" CF8M stainless steel gear operated grooved butterfly valve
valve type	butterfly valve
Material	CF8M stainless steel
port	2-way
inlet connection size	3 inch
inlet connection type	grooved type
outlet connection size	3 inch
outlet connection type	grooved type
operation	gear operated
stem seals	EPDM
seat	EPDM
disc material	CF8M stainless steel
stem material	316 stainless steel
valve design	concentric
pressure rating	ANSI Class 150 (285 psi @ 100°F)
best suited media	water, air, oil
Item Type	grooved butterfly valve
Reference	S-916130341867
Brand	Hykins

	This item: 3" CF8M stainless steel gear operated grooved butterfly valve	8" CF8M stainless steel gear operated grooved butterfly valve	4" CF8M stainless steel gear operated grooved butterfly valve	10" CF8M stainless steel gear operated grooved butterfly valve

Customer Ratings	3.8 (63)	3.6 (91)	4.4 (8)	5.0 (99)
Price	$39.66	$124.22	$51.68	$171.94
valve type	butterfly valve	butterfly valve	butterfly valve	butterfly valve
port	2-way	2-way	2-way	2-way
port type	—	—	—	—
Material	CF8M stainless steel	CF8M stainless steel	CF8M stainless steel	CF8M stainless steel
inlet connection size	3 inch	8 inch	4 inch	10 inch
inlet connection type	grooved type	grooved type	grooved type	grooved type
operation	gear operated	gear operated	gear operated	gear operated
stem seals	EPDM	PTFE	NBR	PTFE
seat	EPDM	PTFE	NBR	PTFE
