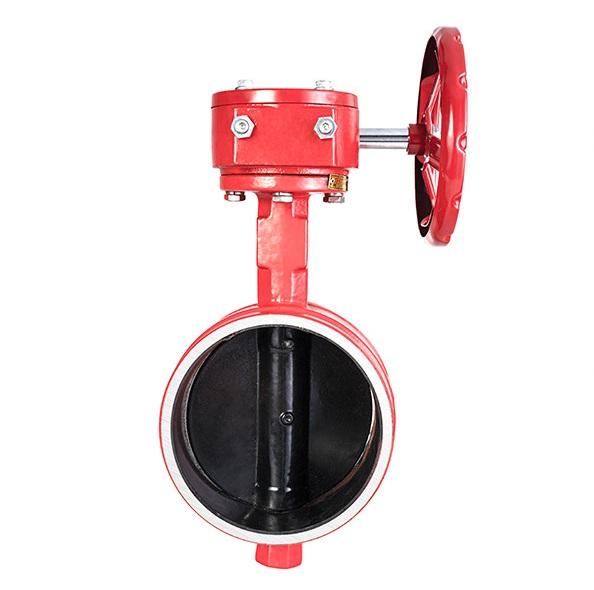

4" CF8M Stainless Steel Gear Operated Grooved Butterfly Valve
Estimated price:
$
51.68
(Final price may vary and will be confirmed via quote.)
| Material | CF8M stainless steel |
| inlet connection size | 4 inch |
| inlet connection type | grooved type |
| operation | gear operated |
The 4" grooved butterfly valve is designed for on/off flow control of water, air, and oil. It can be installed between two grooved-end pipes using standard grooved couplings. The valve body is made of CF8M stainless steel, offering greater corrosion resistance compared to traditional brass or copper valves. The valve can be worm gear operated, utilizing a worm gear mechanism with a quarter-turn handwheel to open or close the valve, allowing for precise adjustment of its position.
Ships worldwide (International shipping fees apply)
Estimated delivery in 5–10 days
In stock
Customizable
Description
- The 4" grooved butterfly valve is used for on/off control of the flow of water, air, and oil.
- The 4" grooved butterfly valve is designed with grooved ends that allow for quick and easy installation between two grooved-end pipes using grooved couplings. This connection method makes installation faster and easier compared to flanged or welded joints, while still providing a secure, leak-resistant seal.
- The valve body is made of CF8M stainless steel, offering greater corrosion resistance compared to traditional brass or copper valves. It features a CF8M stainless steel disc and a 316 stainless steel stem.

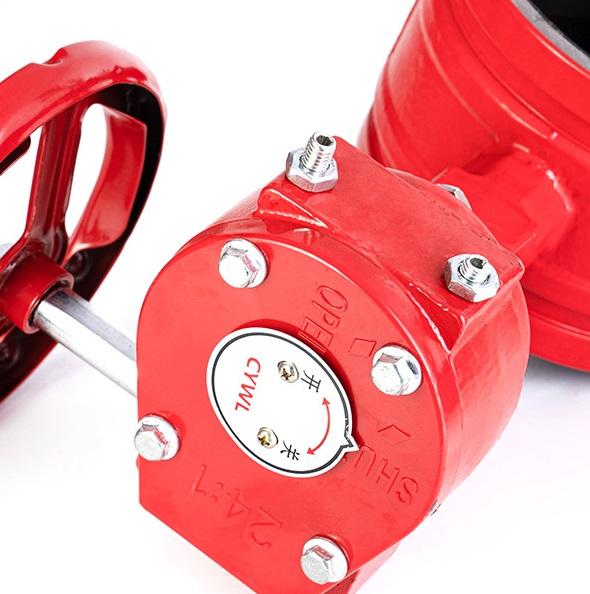

- The valve can be worm gear operated, utilizing a worm gear mechanism with a quarter-turn handwheel to open or close the valve, allowing for precise adjustment of its position.
- The NBR stem seals provide reliable sealing performance and resistance to oils, water, and hydraulic fluids.
- The NBR seat offers a tight seal and good wear resistance.

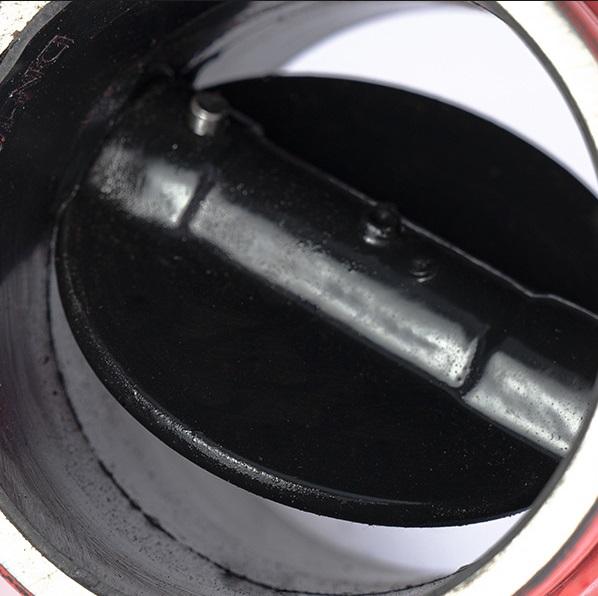

- The butterfly valve features a concentric design, in which the turning axis and axial alignment of the disc are both centered with the valve body, making it compact and cost-effective.
- The valve is rated ANSI Class 150, with a maximum working pressure of approximately 285 psi (at 100°F).
- The butterfly valve is designed for use with water, air, oil, and fuel. Typical applications include industrial/process piping, water treatment and irrigation.
Specifications
| Product Name | 4" CF8M stainless steel gear operated grooved butterfly valve |
|---|---|
| valve type | butterfly valve |
| Material | CF8M stainless steel |
| port | 2-way |
| inlet connection size | 4 inch |
| inlet connection type | grooved type |
| outlet connection size | 4 inch |
| outlet connection type | grooved type |
| operation | gear operated |
| stem seals | NBR |
| seat | NBR |
| disc material | CF8M stainless steel |
| stem material | 316 stainless steel |
| valve design | concentric |
| pressure rating | ANSI Class 150 (285 psi @ 100°F) |
| best suited media | water, air, oil |
| Item Type | grooved butterfly valve |
| Reference | S-916130341867 |
| Brand | Hykins |
Compare with similar items
|
This item: 4" CF8M stainless steel gear operated grooved butterfly valve
|
12" CF8M stainless steel gear operated grooved butterfly valve
|
3" CF8M stainless steel gear operated grooved butterfly valve
|
8" CF8M stainless steel gear operated grooved butterfly valve
|
|
| Customer Ratings | 4.4 (8) | 4.5 (6) | 3.8 (63) | 3.6 (91) |
| Price | $51.68 | $213.28 | $39.66 | $124.22 |
| valve type | butterfly valve | butterfly valve | butterfly valve | butterfly valve |
| port | 2-way | 2-way | 2-way | 2-way |
| port type | — | — | — | — |
| Material | CF8M stainless steel | CF8M stainless steel | CF8M stainless steel | CF8M stainless steel |
| inlet connection size | 4 inch | 12 inch | 3 inch | 8 inch |
| inlet connection type | grooved type | grooved type | grooved type | grooved type |
| operation | gear operated | gear operated | gear operated | gear operated |
| stem seals | NBR | PTFE | EPDM | PTFE |
| seat | NBR | PTFE | EPDM | PTFE |
